IP Power Socket 5G10A v2

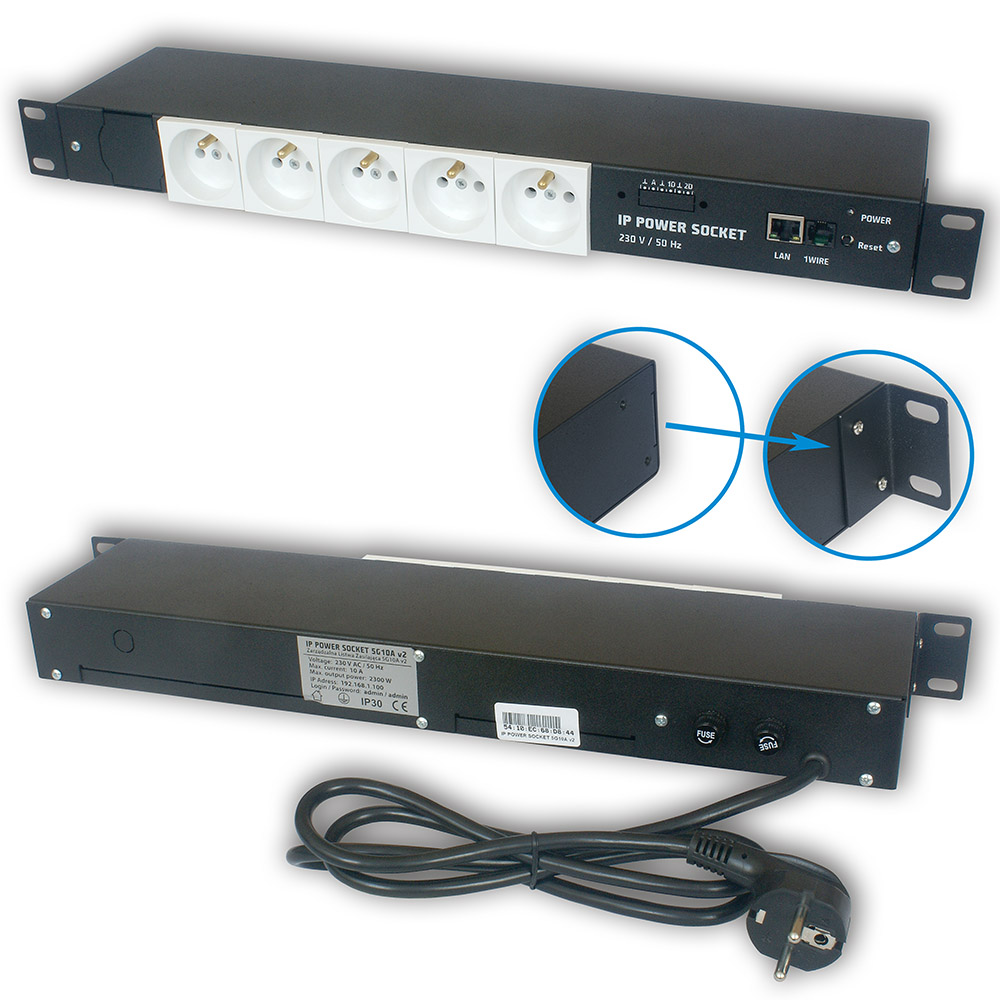

Power strip in Rack 19 inch standard, equipped with 5 independently managed 230V sockets. Management of the strip can be done via the embedded web server or via the SNMP protocol. In addition to the Ethernet socket, the strip has a temperature sensor input in 1-Wire standard (DS18B20). It is possible to support up to 4 sensors (1 to 4 splitter on sale).

Basic features

Technical specifications

Quantity of sockets 5
Supply voltage 230V AC
Maximum current 10A
Maximum power 2300W
Protection 2x10A fuse
Connection type Cable with plug
Interfaces Ethernet 10 Mbit/s
1-Wire - support for up to 4 sensors via RJ11.

Examples of application

Download

Firmware

v6.12a

Filename: powersocketip5g_v6_12a.bin (298.0 KB)

v6.12

Filename: powersocketip5g_v6_12.bin (299.3 KB)

v6.10

Filename: powersocketip5g_v6_10.bin (293.0 KB)

v6.09

Filename: powersocketip5g_v6_09.bin (301.3 KB)

Documents

Deklaracja CE - IP Power Socket 5G10A v2

Filename: Deklaracja_Listwa_Zasilajaca_v2_LANLIS-002.pdf (247.7 KB)

Informacja techniczna - IP Power Socket 5G10A v2

Filename: Listwa_Zasil_5G10A_v2_LANLIS-002_PL_Tiny.pdf (1.5 MB)

Instrukcja - IP Power Socket 5G10A v2 pl

Filename: instrukcja_IP_Power_Socket_v2_LANLIS-002_PL.pdf (1.9 MB)

Manual - IP Power Socket 5G10A v2 en

Filename: manual_IP_Power_Socket_v2_LANLIS-002_En.pdf (1.8 MB)
