Relays board 5x16A

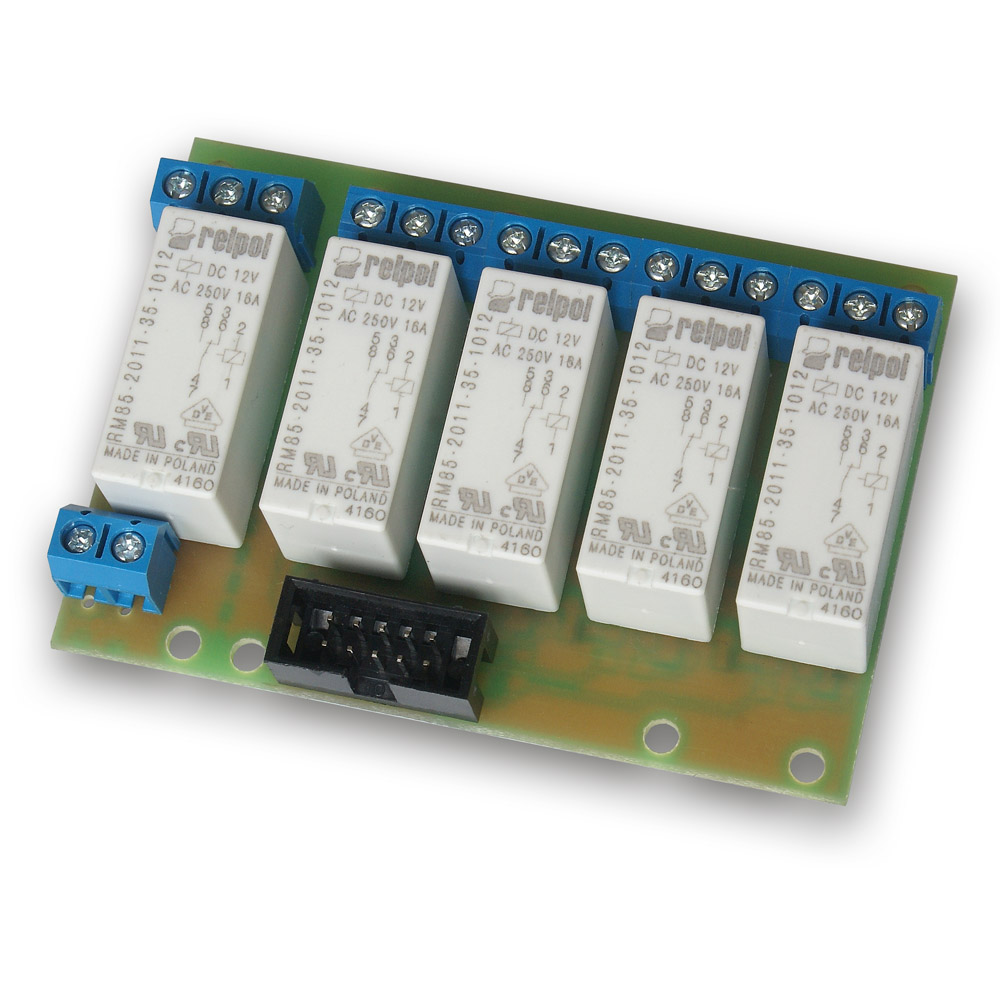

Board containing 5 high quality RELPOL relays. After connecting to GSM Controller v3 or Lan Controller has the ability to turn on, off, reset each of the relays independently. The main application is to control 5 electrical devices. The board is powered via LAN/GSM Controller and requires a supply voltage of 9-30V (in this range must be the Lan Controller supply voltage).
Technical specifications
| Number of relays |
5 |
| Relay contacts |
NO, C, NC |
| Contact material |
AgSnO2 |
| Maximum load |
16A - for 250V AC (AC-1)
16A - for 24V DC (DC-1)
|
| Contact resistance |
≤100mOhm |
The kit includes a control cable with plugs.
