Air quality measurement station
The station allows quantitative measurement of suspended dust PM1, PM2.5, PM4 and PM10 and sending this data via the Internet to the server. Along with the station, our company offers a free account on the server mqtt.ats.pl, which allows you to save data and view them. For example they can be displayed on graph with current and historic readings. It is possible to place a graph with readings on your own page.
The measurement is performed in laser technology using a sensor from the reputable company Sensirion SPS30.
We offer the station in two versions: Ethernet (with Lan Controller, PoE supply, data transmission via Ethernet) and GSM (with GSM Controller v4.2, power supply 9-50V, data transmission via radio network).
Kit contents
| Ethernet version |
GSM version |
| Particulate matter sensor SPS30 |
| Humidity and temperature sensor BME280 |

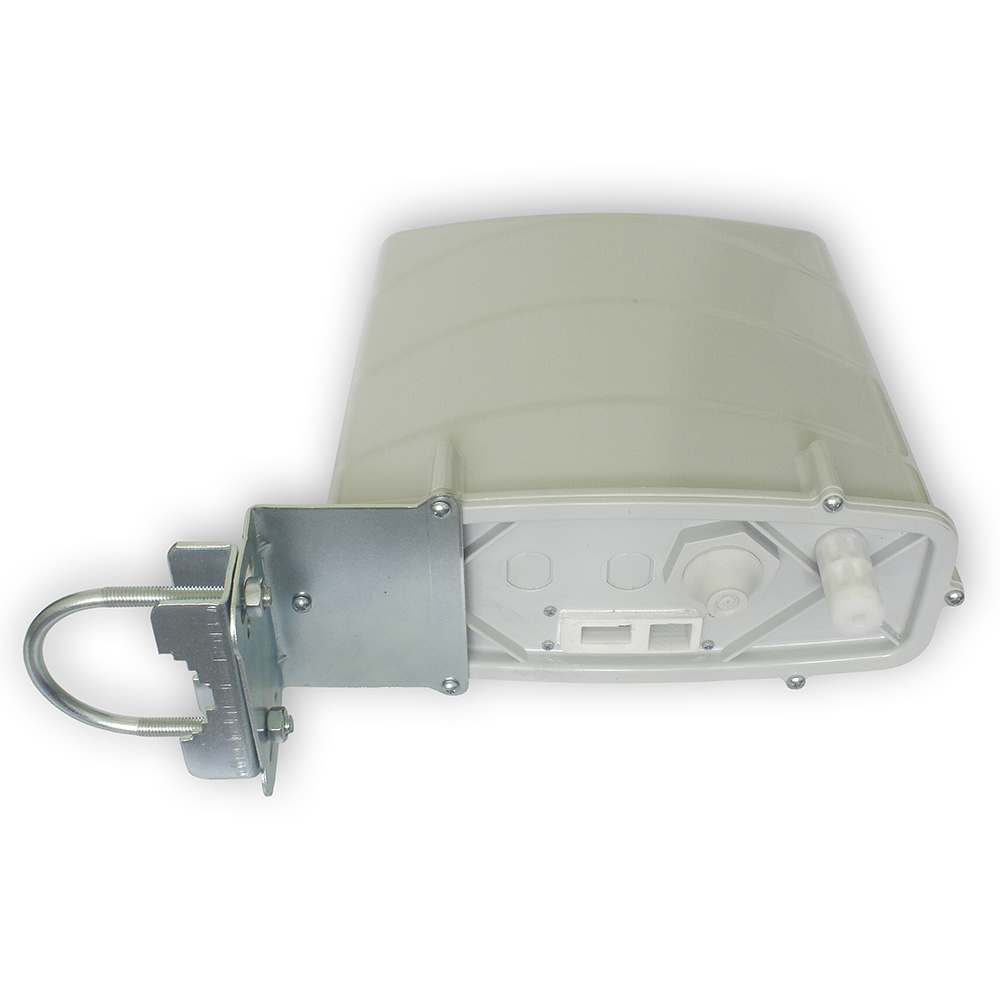

| Watertight housing with a handle |
| Lan Controller v3.5 |
GSM Controller v4.2 |
| Passive POE 18 V power supply or 802.3af version for connection to an active switch |
- |
Technical specifications
| Measurements |
PM1, PM2.5, PM4, PM10 |
| Measurement range |
0.0-1000μg/m3 |
| Measurement resolution |
≥1μm |
| Relative error |
10% |
| Operating temperature range |
-20 to +50 °C |
| Dimensions |
200 x 205 x 83mm (without handles) |
| Data transmission protocols |
HTTP, MQTT, SNMP |
| Durability |
up to 8 years depending on the intensity of pollution |
The exact technical data of the sensor from the manufacturer.
Live view
An example of the measurement with this sensor is presented on the website www.powietrze.radom.pl.
