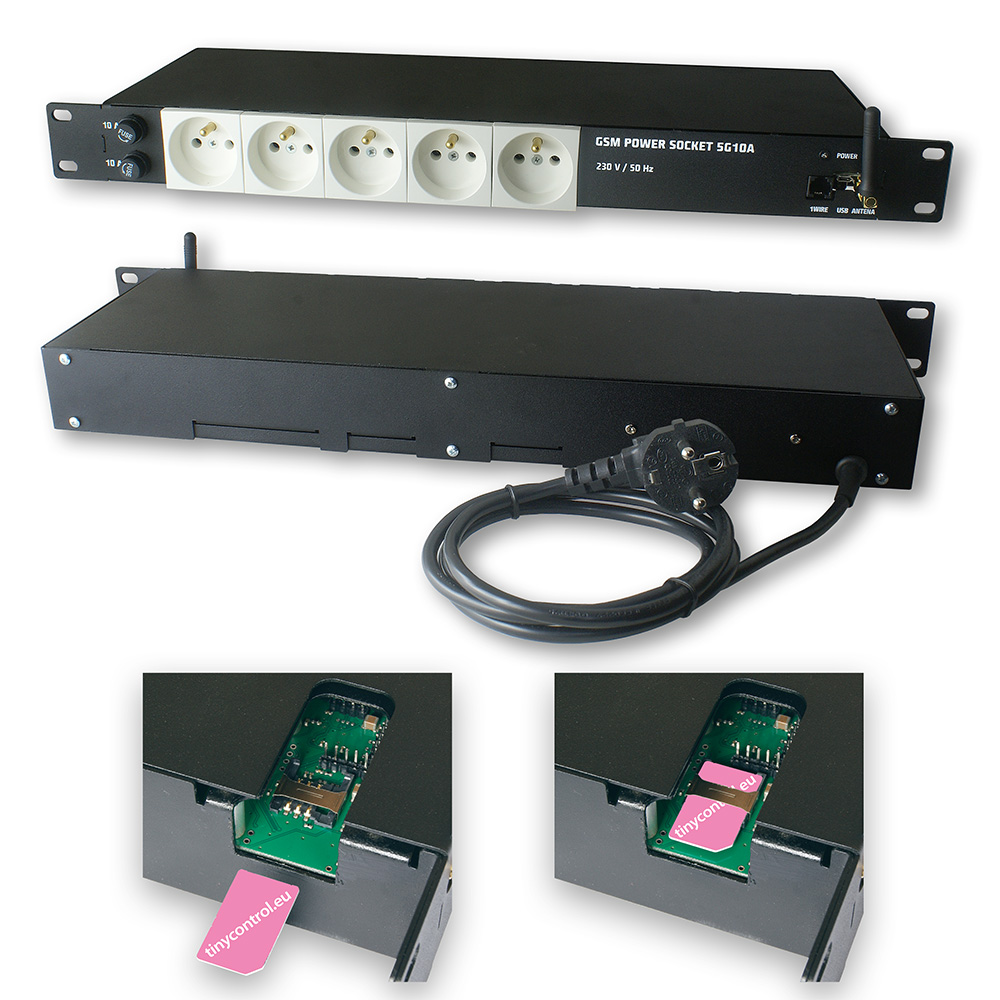

GSM Power Socket 5G10A v2
Power strip in Rack 19 inch standard, equipped with 5 independently managed 230V sockets and GSM module for remote control of sockets. Management of the strip can be done via SMS messages with password authorization. The GSM module power supply is maintained by the battery, thanks to which, after proper programming, we can be notified of a power shortage and power up. The strip has an input for temperature sensors in 1-Wire standard (DS18B20). It is possible to support up to 4 sensors (1 to 4 splitter on sale).
Basic features
- Management via USB console and SMSs.
- Remote on/off sockets via SMS.
- Possibility to measure temperatures from 4 1-Wire sensors.
- Ability to set notification for power outage.
Technical specifications
| Quantity of sockets | 5 |
|---|---|
| Supply voltage | 230V AC |
| Maximum current | 10A |
| Maximum power | 2300W |
| Protection | 2x10A fuse |
| Connection type | Cable with plug |
| Interfaces | Micro USB x1
1-Wire - support for up to 4 sensors via RJ11. |
| Battery | 12V 0.8Ah (maintaining GSM power supply) |
| Buffer power supply | Meanwell SCP-35-12 13.8V/2.6A |
| Dimensions | 45 x 425 x 140mm (without handles) |
| Weight | 2.60kg |
Examples of application
- Server cabinets.
- Low power heating control.
- Power supply for devices requiring remote control.
- Power supply for devices requiring temporary on/off.
Download
Documents
Deklaracja CE
Filename: Deklaracja_Listwa_Zasilajaca_GSM_GSMLIS-001.pdf (70.0 KB)
Informacja techniczna - GSM Power Socket pl
Filename: GSM_Listwa_Zasil_5G10A_GSMLIS-001_PL_Tiny.pdf (1.5 MB)
Technical information - GSM Power Socket en
Filename: GSM_Power_Socket_5G10A_GSMLIS-001_EN_Tiny.pdf (1.5 MB)
Instrukcja - GSM Power Socket
Filename: instrukcja_GSM_Power_Socket_5G10A_GSMLIS-001_PL.pdf (1.4 MB)
