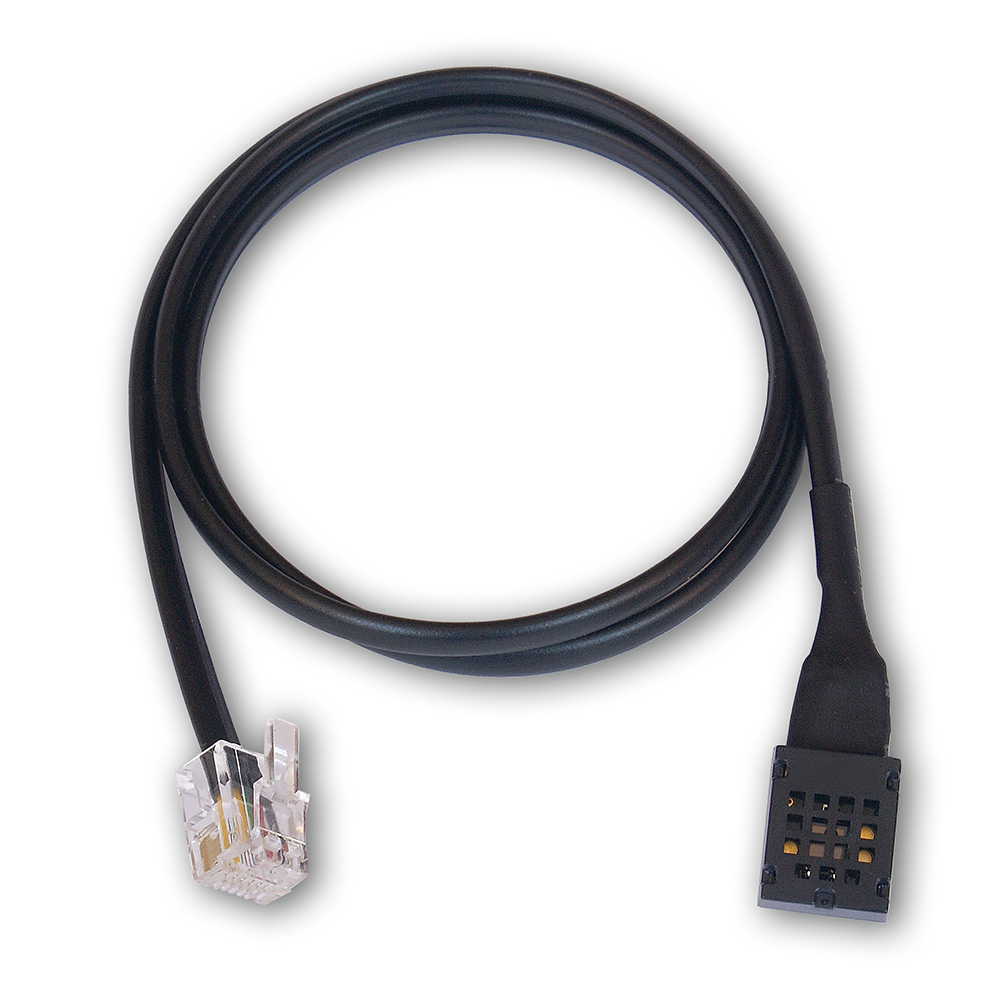

Temperature and humidity sensor AM2320
No longer available - for LK HW 3.5+ use
AM2301B instead.
Digital sensor operating via the I2C bus.
Technical specifications
| Measurement range |
0-99.9% (humidity)
-40 to +80 °C (temperature)
|
| Measurement resolution |
0.1% (humidity)
0.1% (temperature)
|
| Measurement accuracy |
+/- 3% (humidity, at 25 °C)
+/- 0.5 °C (temperature)
|
| Measurement repeatability |
+/- 0.1% (humidity)
+/- 0.2 °C (temperature)
|
The maximum length of the transmission cable is 5m.
Always mount the sensor with the cable downwards!
