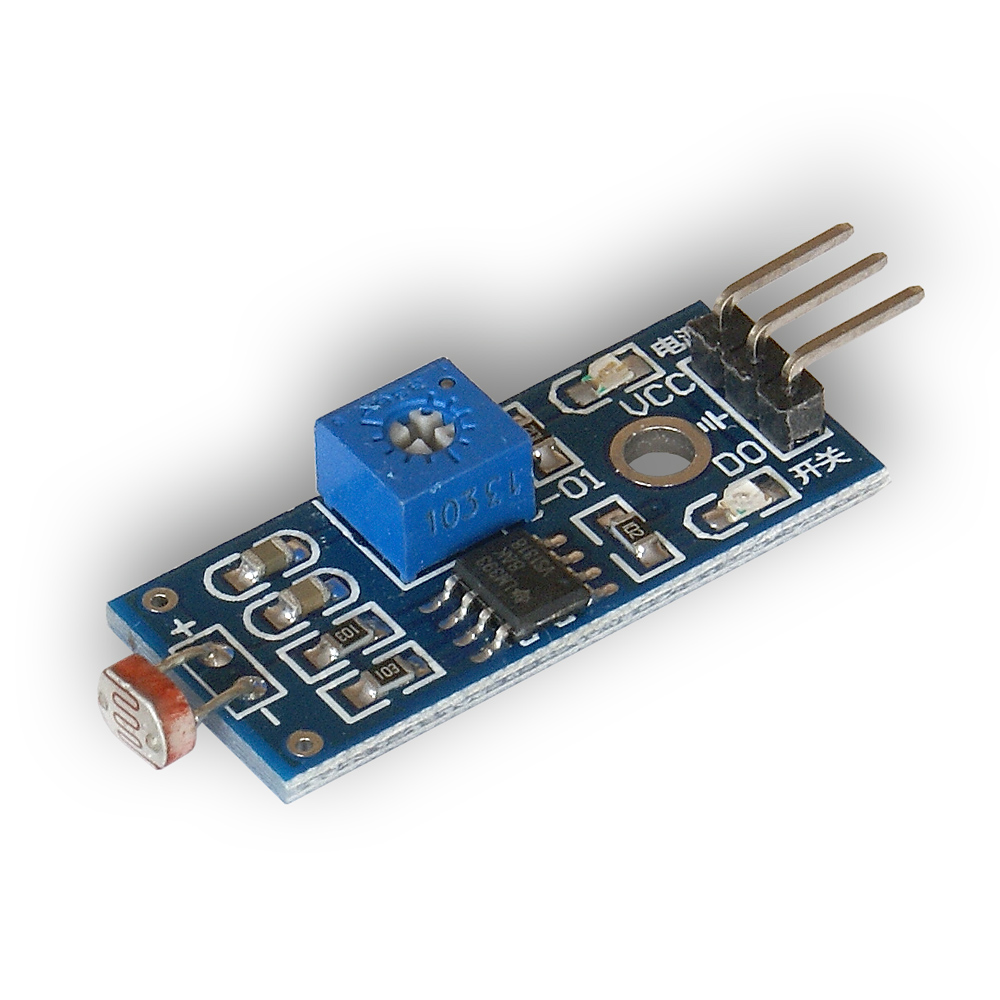

Dusk sensor (digital output)

Sensor that changes the state of the logic output after exceeding the light intensity threshold. It can be used with Lan Controller as a dusk sensor, if we do not want to lose the analog input to the analog sensor (photoresistor).

Technical specifications

Supply voltage	5V
Transducer used	photoresistor
Comparator used	LM393
Connector	goldpin 3-pin with 2.54mm pitch
Dimensions	36 x 14mm
Others	The sensitivity can be adjusted using a potentiometer. LED indicating power supply.
