Temperature sensor PT1000

Temperature sensor PT1000
Buy

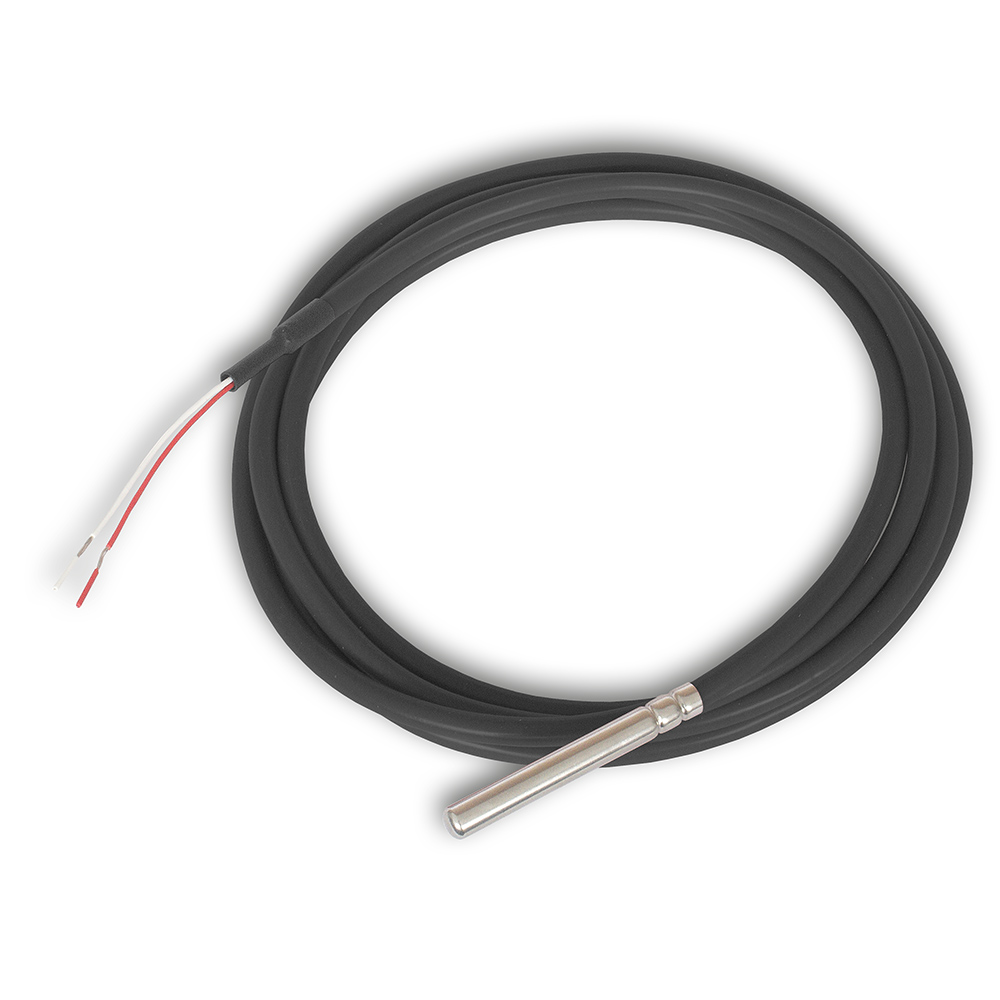

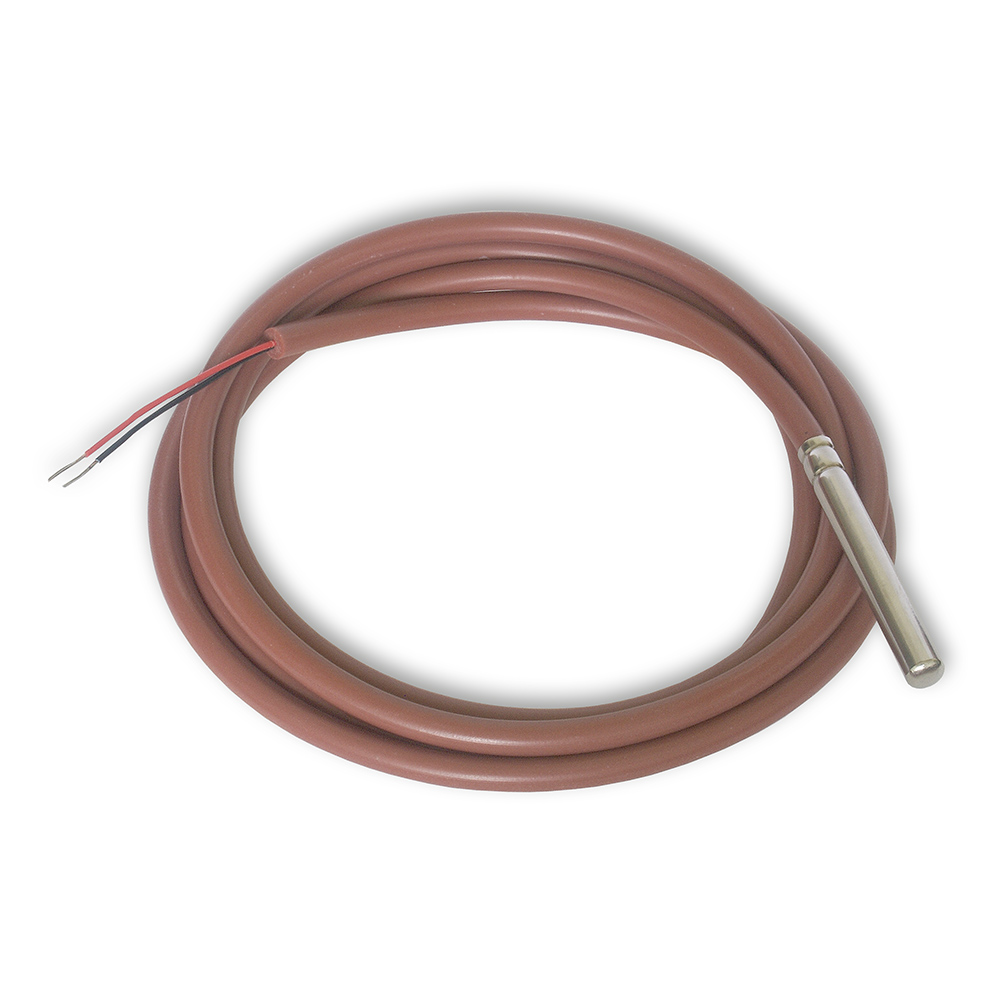

Temperature sensor type PT1000 in a metal housing with a silicone cable (resistant to high temperature), 1.5 m long. The sensor can be used with a Lan Controller or with any device supporting the PT1000 sensor.

Technical specifications

Temperature sensor typePT1000
Resistance at 0°C1 kΩ
Temperature range–30°C ÷ +300°C
Cord length150 cm
Sensor diameter6 mm
Housing length50.5 mm
Silicone diameter5 mm
Output2 wires
