PIR motion sensor

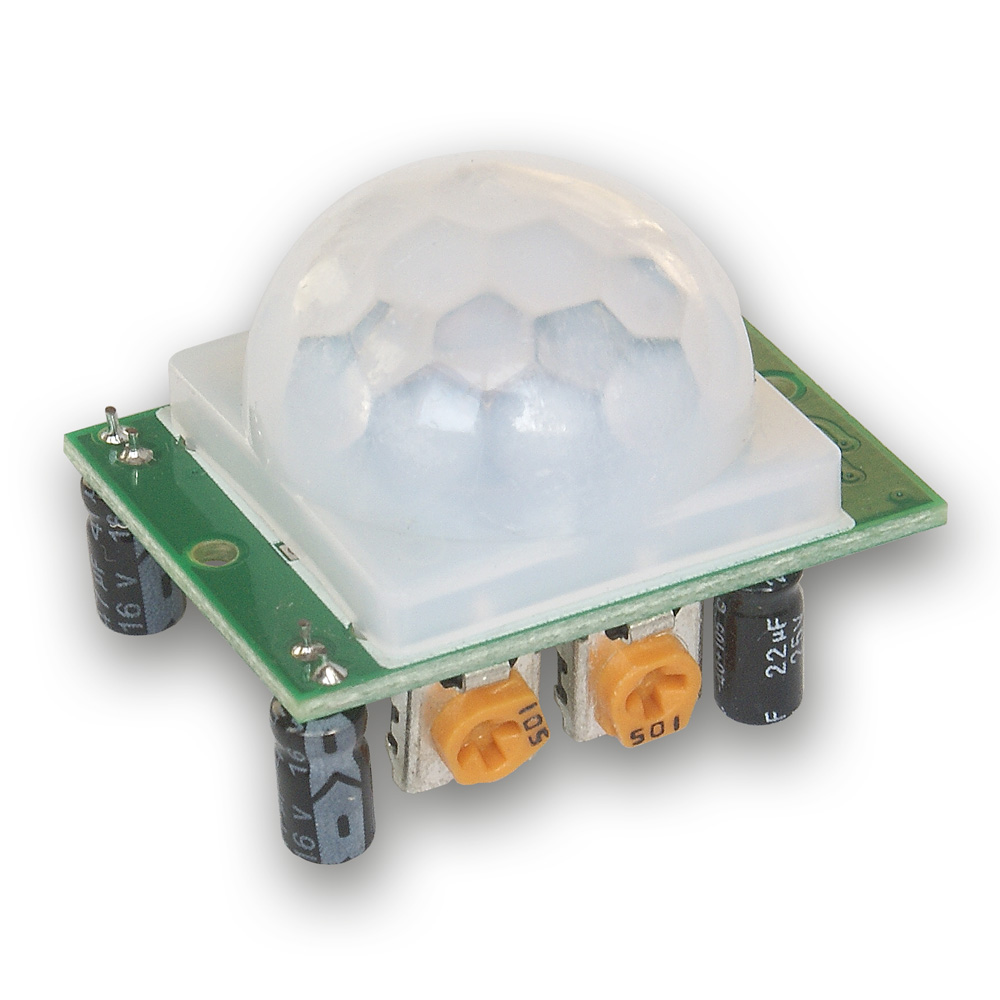

The PIR motion sensor of type HC-SR501 allows motion detection based on infrared radiation analysis. The sensor detects changes from 2 separate IR windows, and the amplifier transforms this pulse into a signal with a high logical level. Such a signal can easily be used to drive a transistor or logic input of processor. When used with a Lan Controller, connect the detector output to the INPD1-4 logic input. However, it should be noted that a low state forced by the detector means rest, and a high state indicates motion detection.

On the board there are 2 potentiometers described as Sx and Tx.

  • Tx - sets the duration of the high state after activation of the detector - for a dozen or so seconds the potentiometer should be set around 9 o'clock.
  • Sx - sets the delay time before arming after the last trigger.

The sensor works in retriggering mode, i.e. in the case of continuous motion detection the high state at the output is maintained at all times.

A more detailed description of the operation of the PIR sensor is available at this site.
