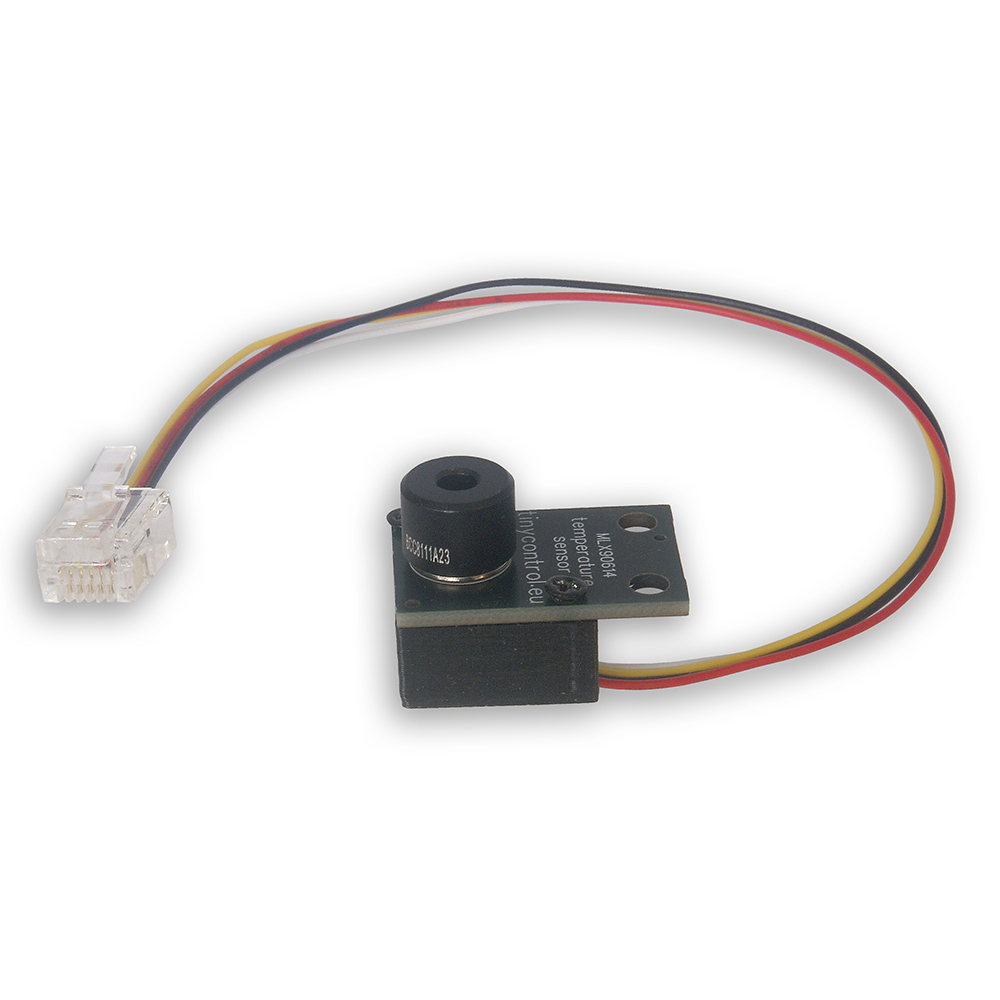

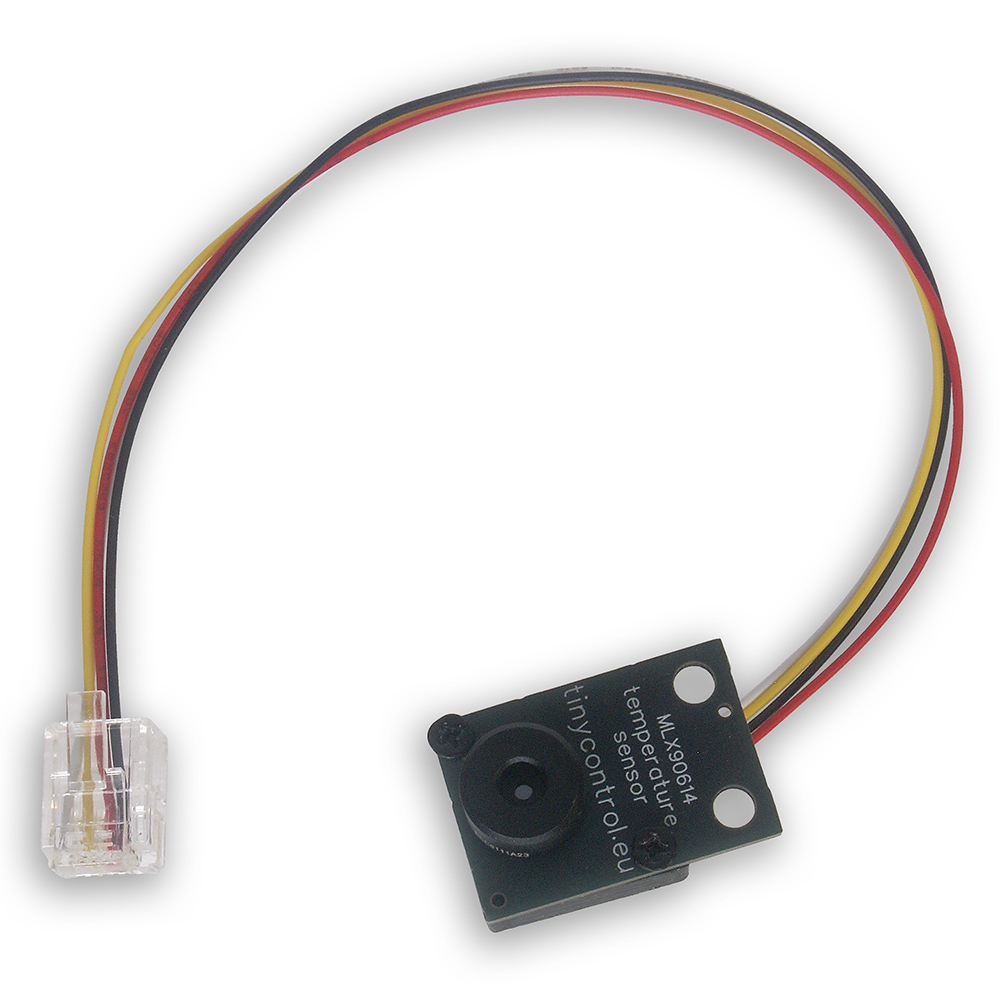

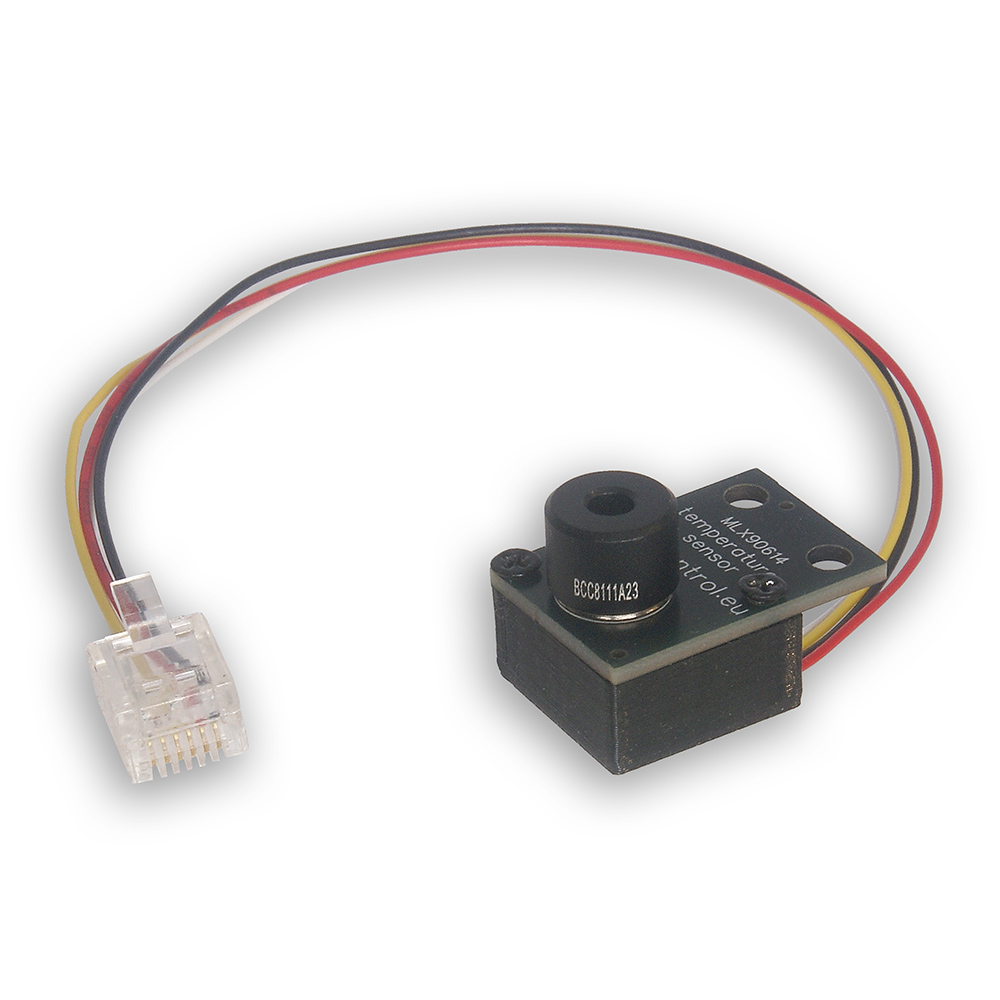

Digital non-contact temperature sensor MLX90614

Digital non-contact temperature sensor MLX90614

SensorMLX90614ESF-BCC-000-TU by Melexis
Ambient temperature measurement range–40 °C ÷ 85 °C
Object temperature measurement range–40 °C ÷ 380 °C
Object temperature measurement angle35° FOV
Temperature measurement resolution0.02 °C
Temperature measurement accuracy±0.5 °C
Calibrated emissivity coefficient1.0
Supply voltage3.3 V
Supply current1.3 mA
InterfaceI2C

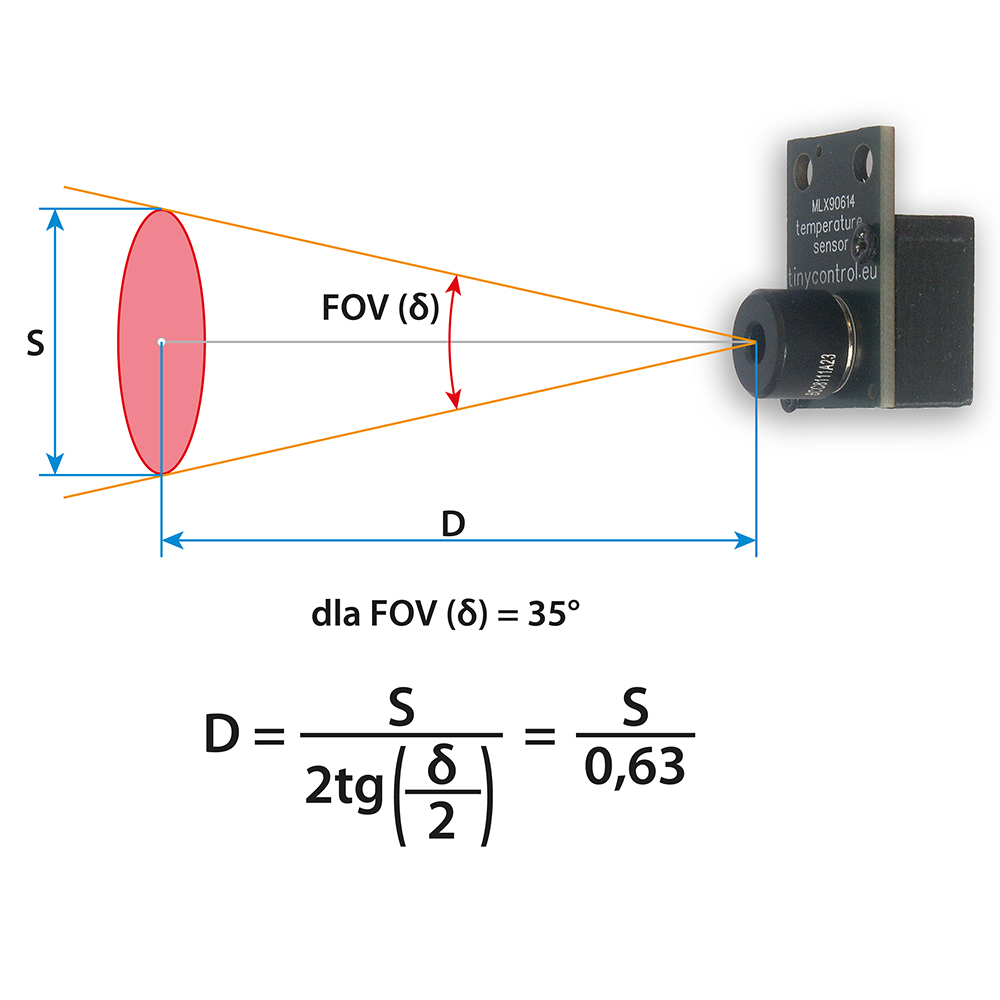

The image below shows how to calculate the distance to the measured object.
