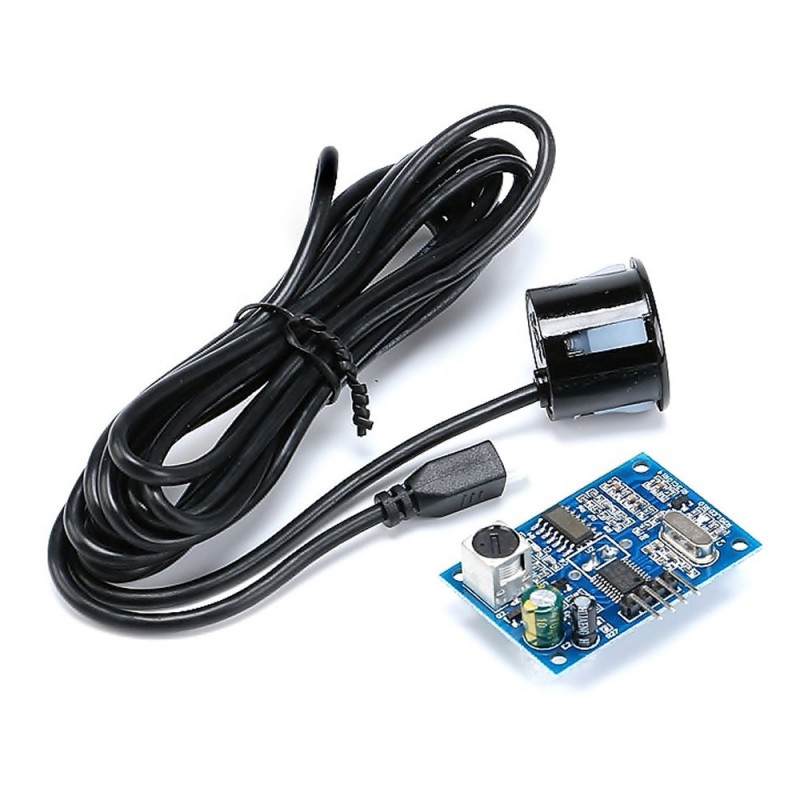

Ultrasonic distance sensor JSN-SR04T-2.0

Ultrasonic distance sensor supported by Lan Controller via serial port. It gives a direct reading of the distance, which can be used to set a condition in Events.

Technical specifications

Supply voltage	3.0 - 5.5V DC
Working current	< 8 mA
Probe frequency	40kHz
Measurement range	20 - 600 cm
Measurement accuracy	+/- 1 cm
Measurement resolution	1mm
Viewing angle	75°
Operating temperature range	-20 to 70 °C
Interfaces	UART, PWM
