Temperature sensor DS18B20U

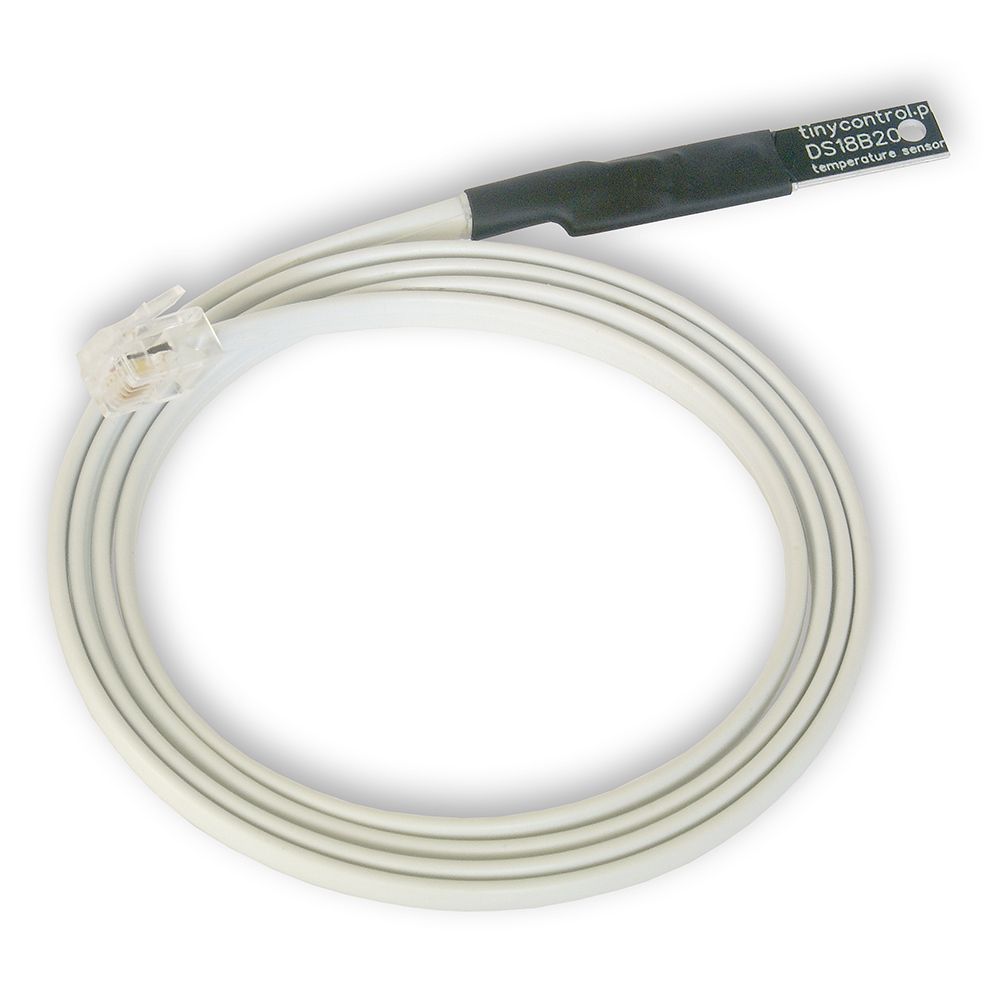

Digital temperature sensor with cable and RJ11 connector as standard Lan Controller.

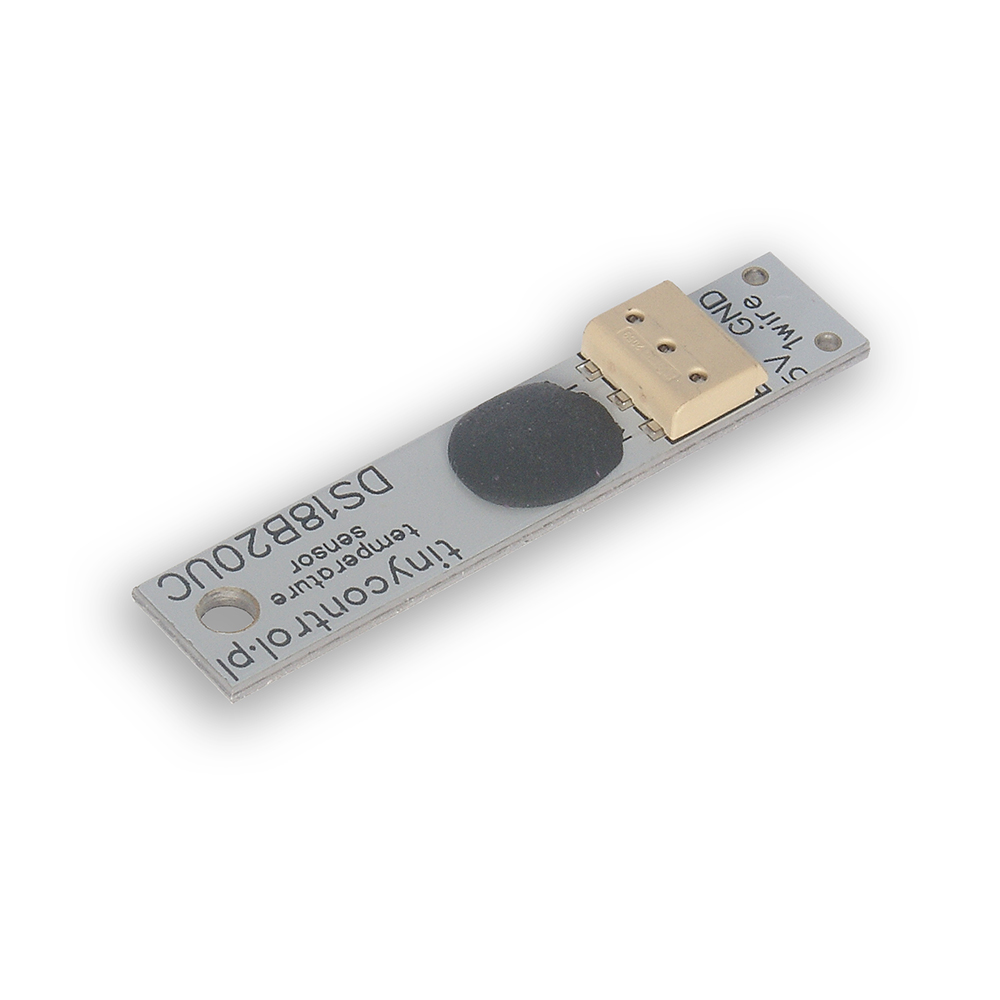

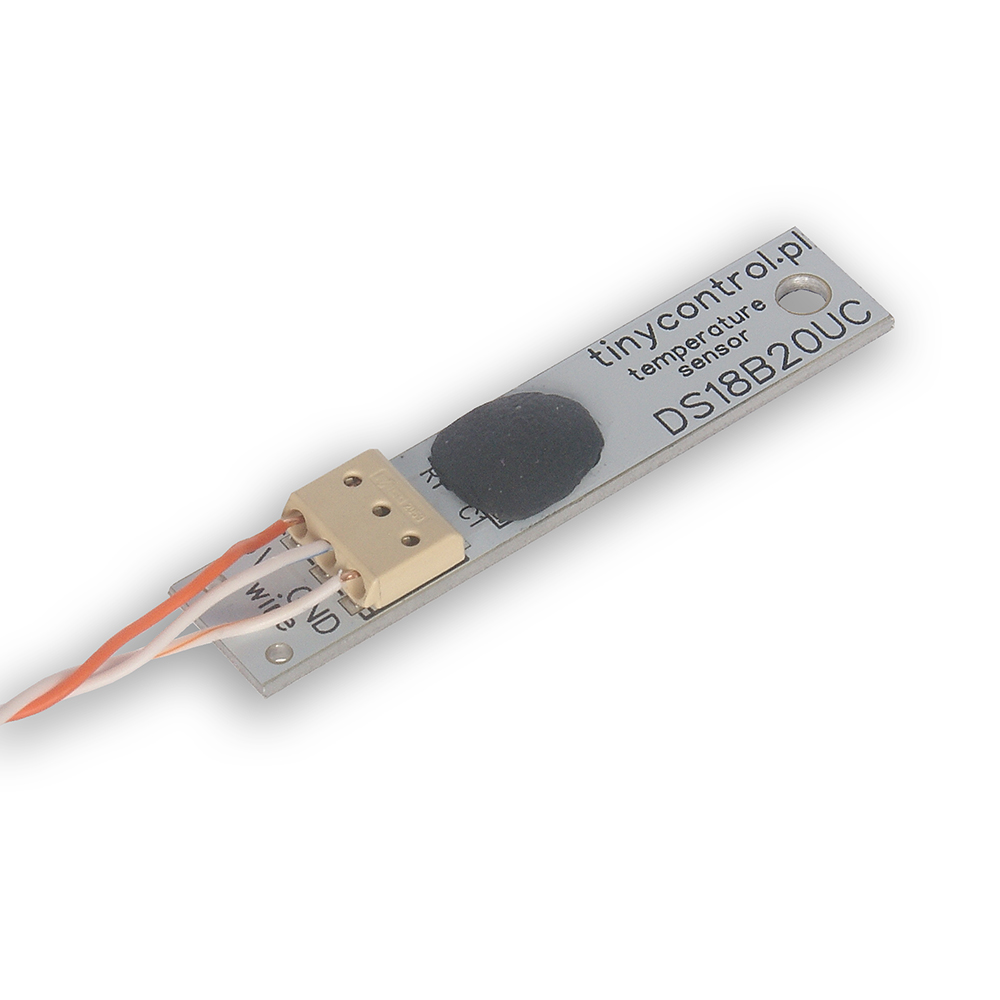

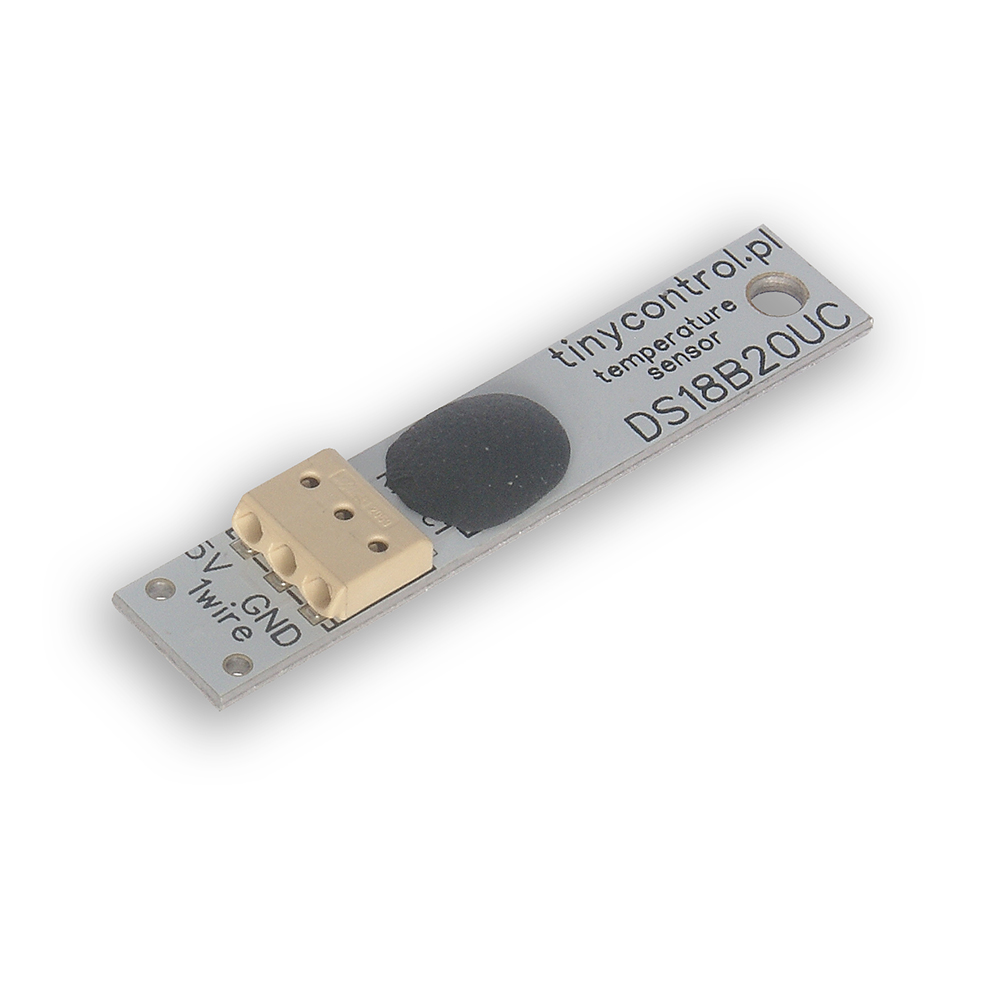

The sensor in the digital 1-Wire bus standard, compatible with DS18B20 sensors. Each sensor is programmed with a serial ID number, which allows for reading multiple sensors on one bus. The aluminum substrate enables very fast heat transfer to the sensor.
Technical specifications
| Programmable transducer accuracy |
9-12 bit |
| Measurement range |
-55 to +125 °C |
| Measurement accuracy |
+/- 0.4 °C (in the temperature range -10 to +85 °C) |
| Power supply |
2.5 - 5.5 V DC |
| ESD protection |
> 8000V |
| Typical current draw in standby mode |
1 uA @ 3V |
| Typical current draw during conversion |
0.6 mA @ 3V |
| Protection class |
IP44 |
| Cable length |
105 cm / 3 m / 5 m |
