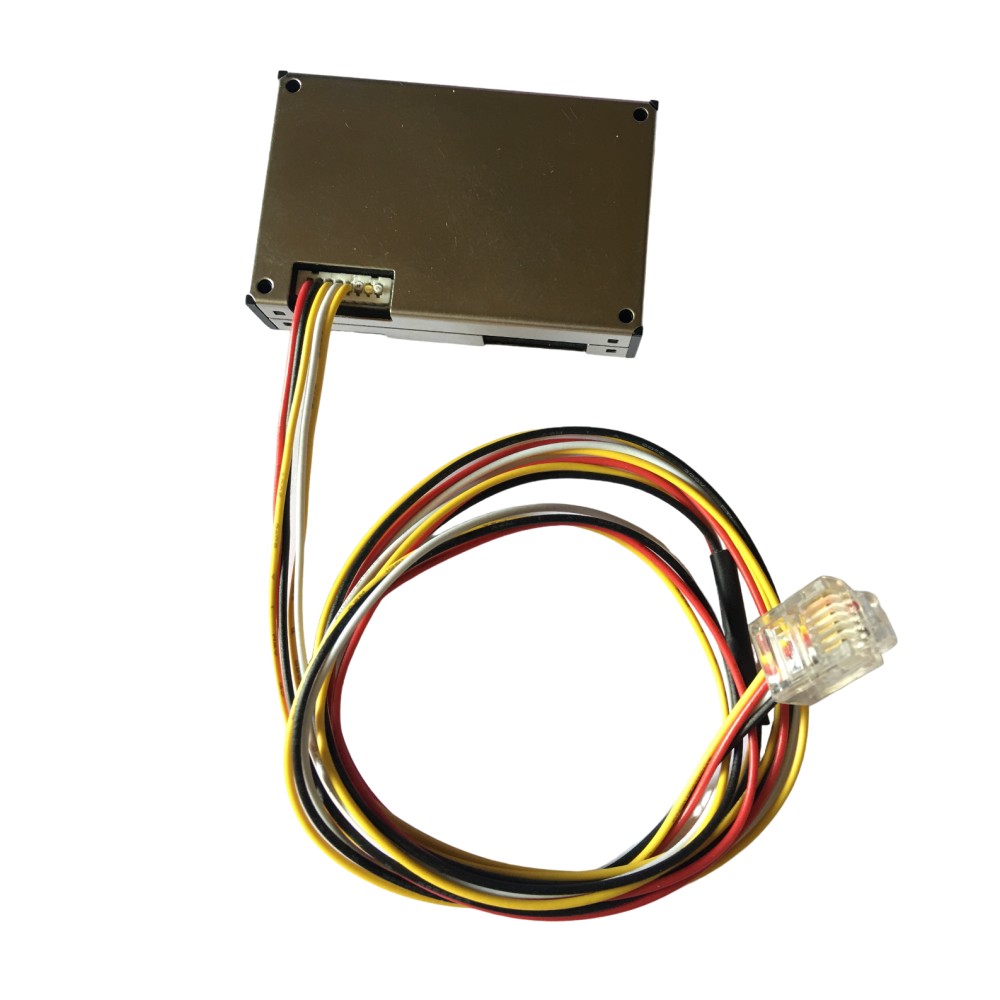

Laser particulate matter sensor APM10
Laser PM2.5 and PM10 particulate matter sensor - APM10.
Basic features
- Accurate measurement based on the laser scattering principle.
- Smallest measurable particle size 0.3 μm.
- Self-calibration.
- Digital output.
- Metal shell and stronger anti-EMC ability.
Technical specifications
| Supply voltage | 4.75 - 5.25 (typical 5) V |
|---|
| Operating current | 50 (max. 100) mA |
|---|
| Standby current | 10 mA |
|---|
| Particle size | 0.3 - 10 (typical 2.5) μm |
|---|
| Particle concentration | 0 - 1000 μg/m3 |
|---|
| Accuracy of PM2.5 | ±15 μg/m3 (0~100 μg/m3)
±15% M.V. (100~1000 μg/m3) |
|---|
| Data update period | 1 s |
|---|
| Lifetime | >3 Y (depending on the operating environment) |
|---|
| Size | 49×31.5×10.8 mm |
|---|
| Operating temperature | -10 - 50 (typical 25) ℃ |
|---|
| Storage temperature | -30 - 70 (typical 25) ℃ |
|---|
