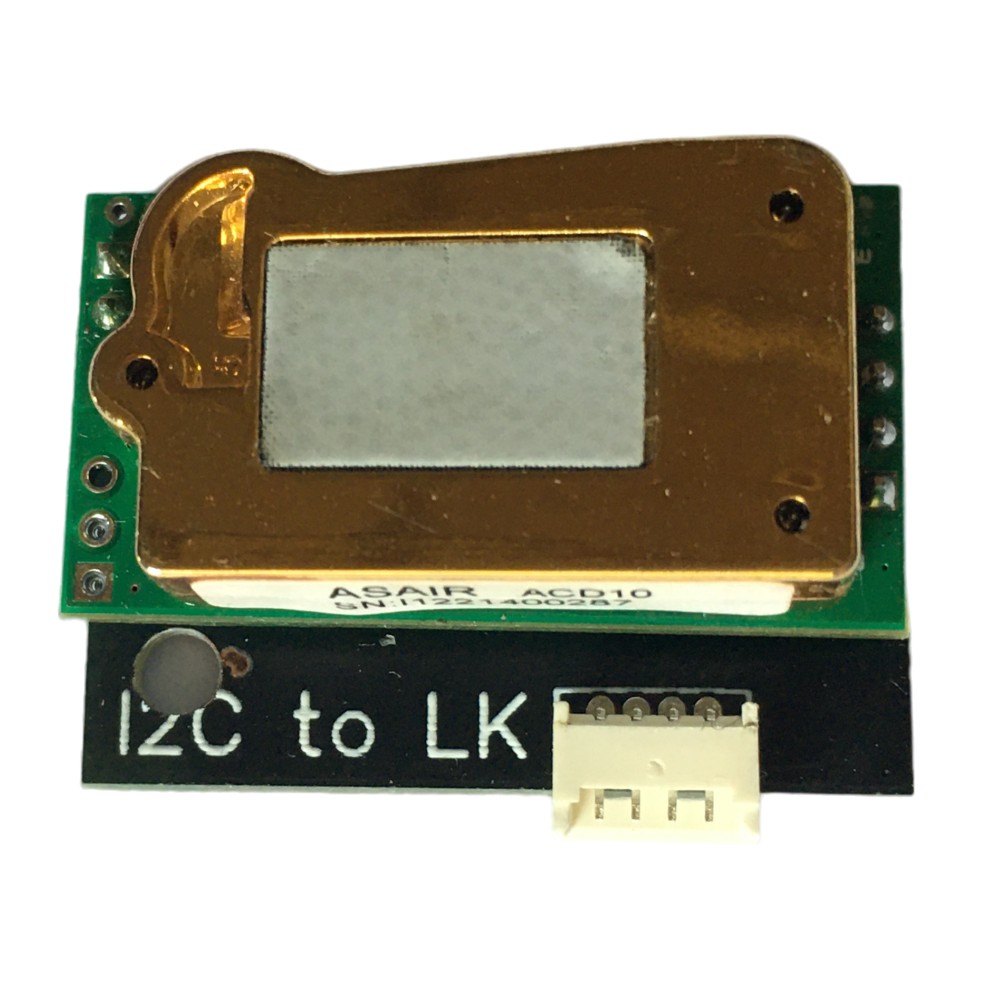

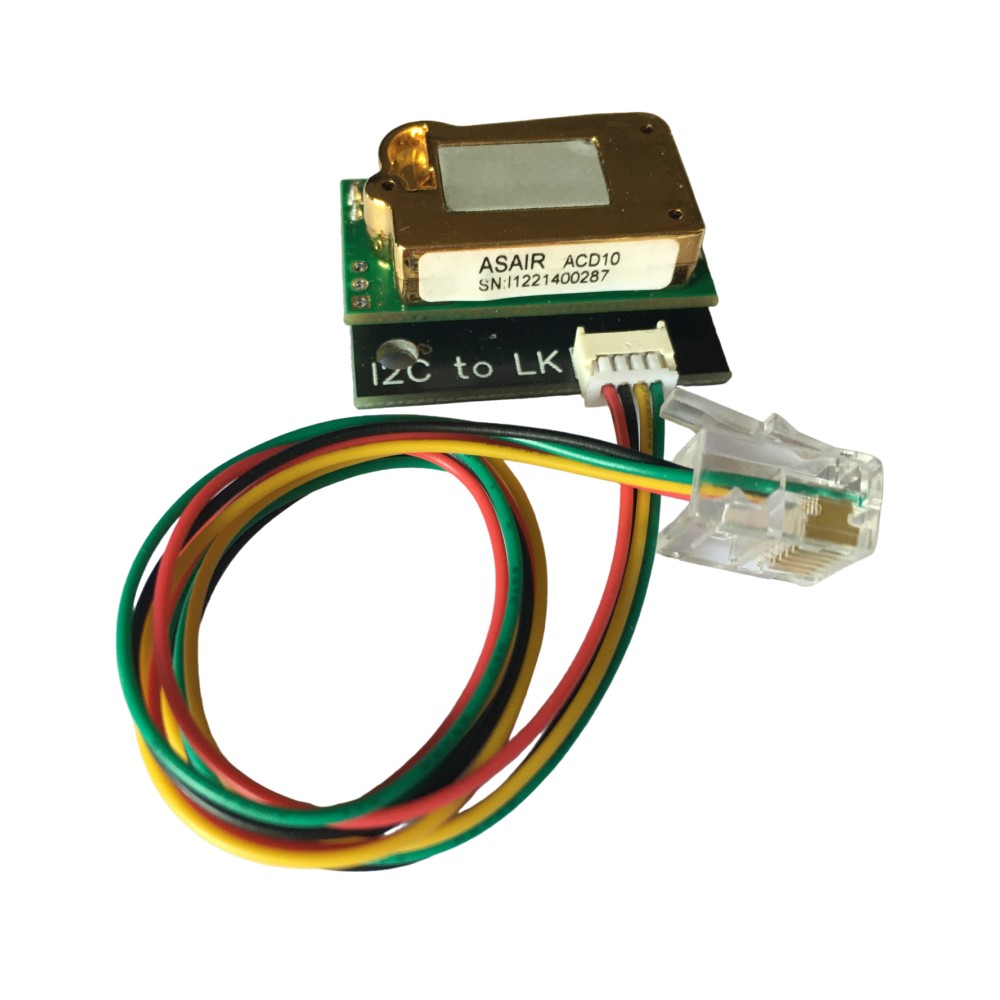

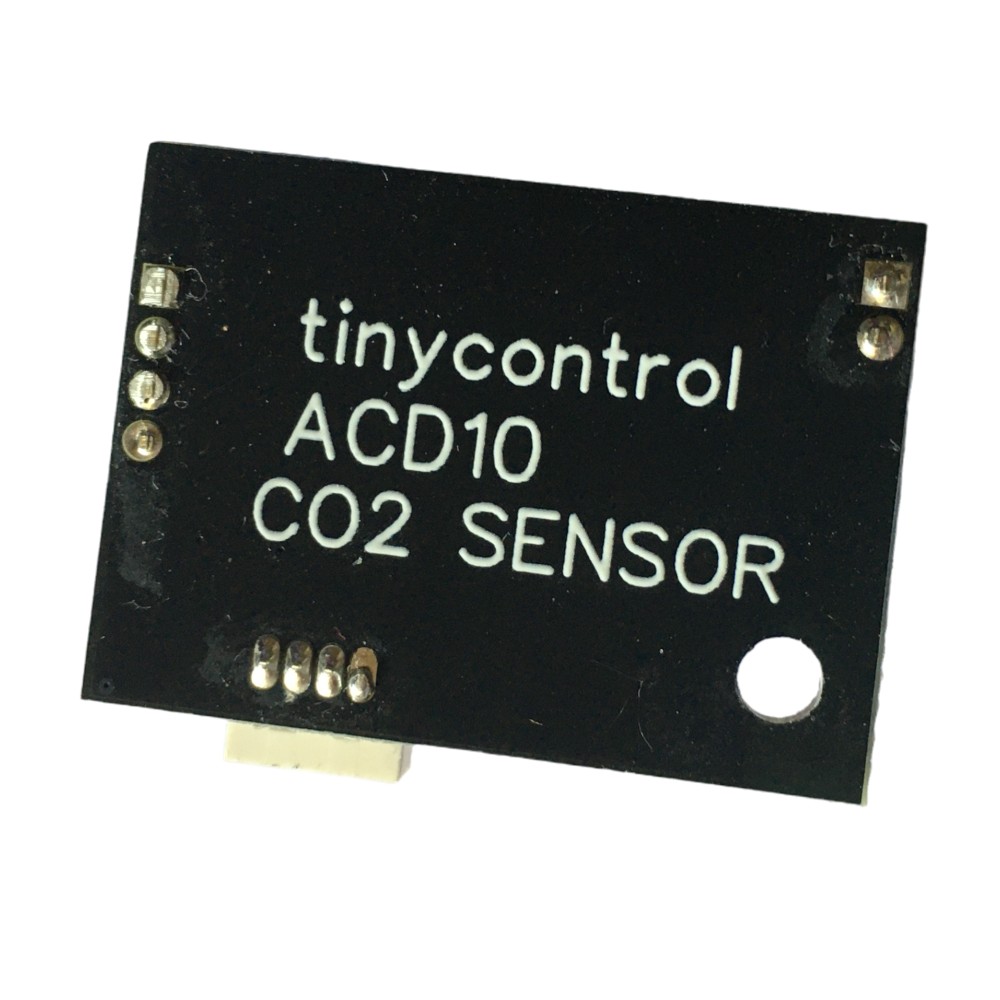

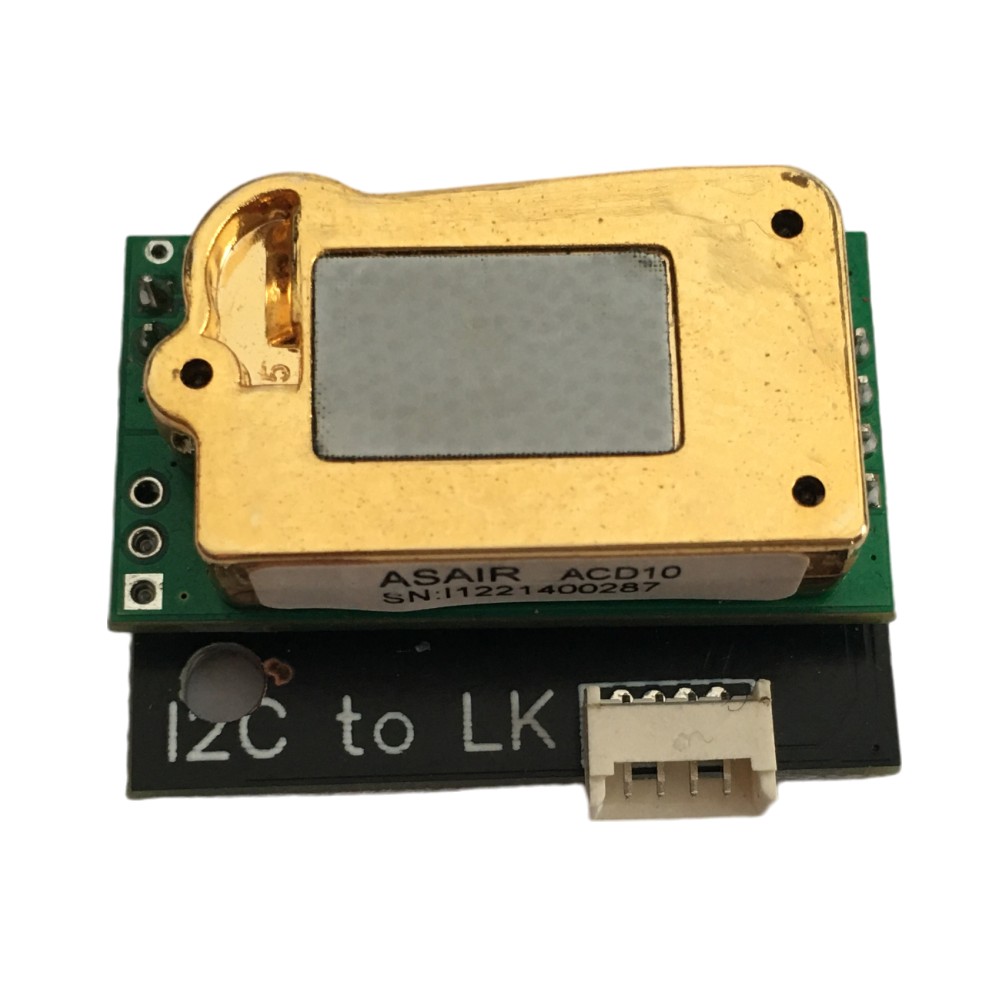

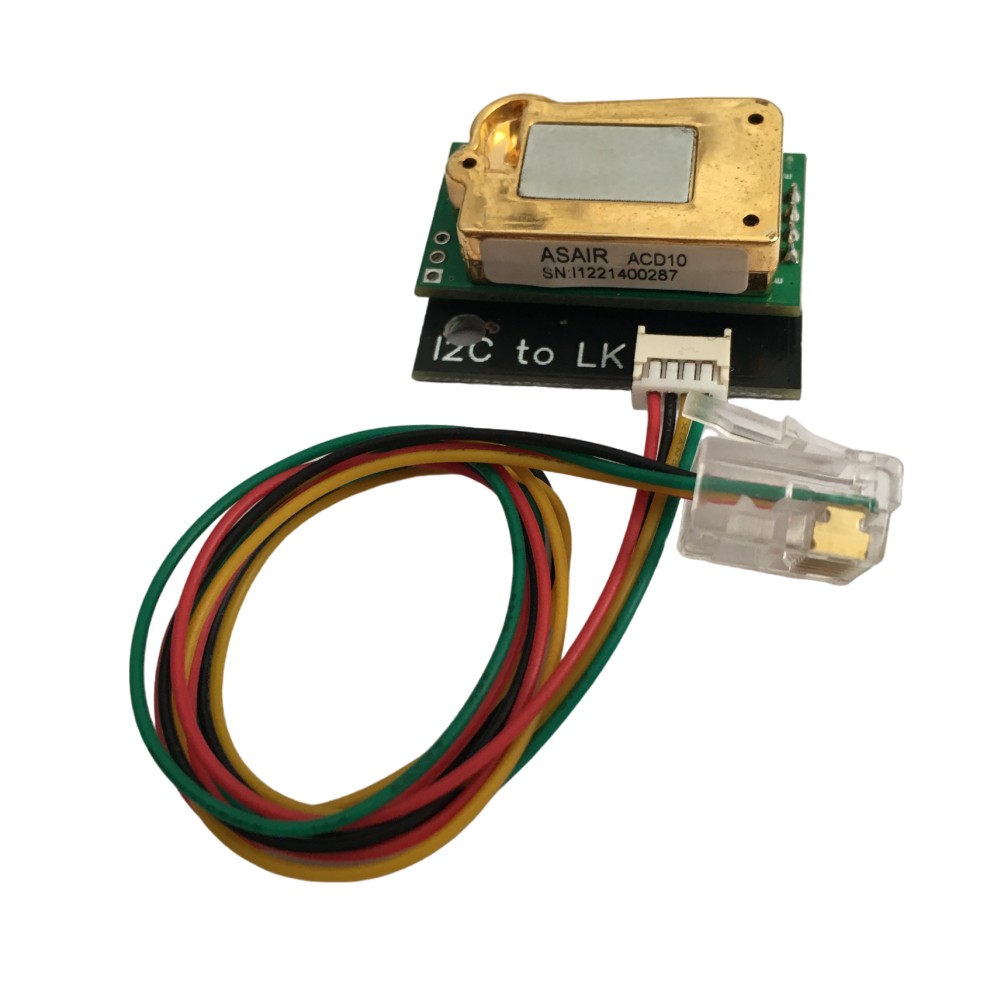

CO2 sensor ACD10
ACD10 is a sensor detecting the concentration of CO2 in the air based on the non-dispersed infrared (NDIR) principle. ACD10 consists of a precision optical path, a high-precision detection circuit, and a component to detect infrared absorption for gas sensing. ACD10 has good selectivity, no obvious oxygen dependence, and long life. It has a digital output, which makes it easy to use.
Compatible with LK4 and LK3.5.
Technical specifications
| Working voltage | 4.75~5.25V |
|---|
| Working current | average current <45mA |
|---|
| Typical power | 225mW @5V |
|---|
| Measurement range | 400~5000ppm |
|---|
| Accuracy | ± (50ppm + 5% reading) |
|---|
| Preheating time | 120s |
|---|
| Operation condition | 0°C ~50°C. 0~95%RH (non-condensation) |
|---|
| Storage condition | -20°C ~60°C. 0~95%RH (non-condensation) |
|---|
| Data refresh frequency | 2s |
|---|
| Life | >5 years |
|---|
