Current sensor WCS6800

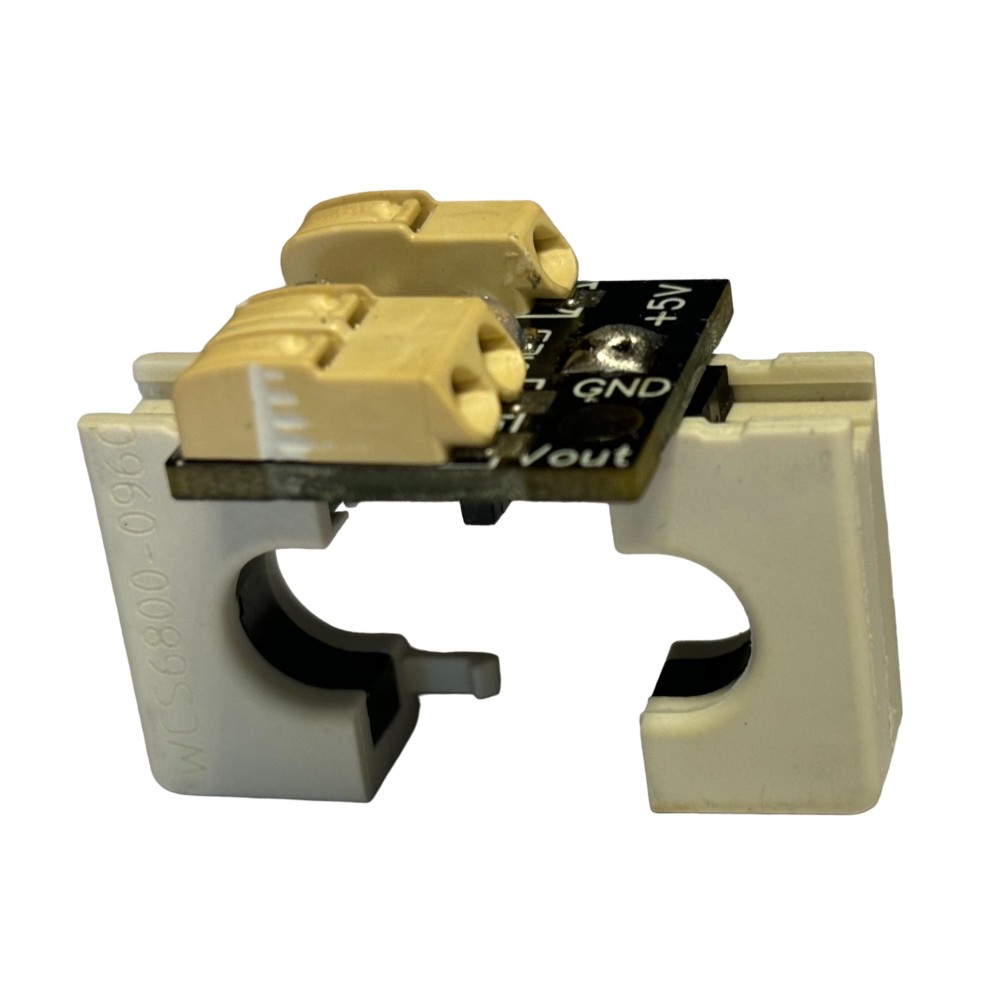

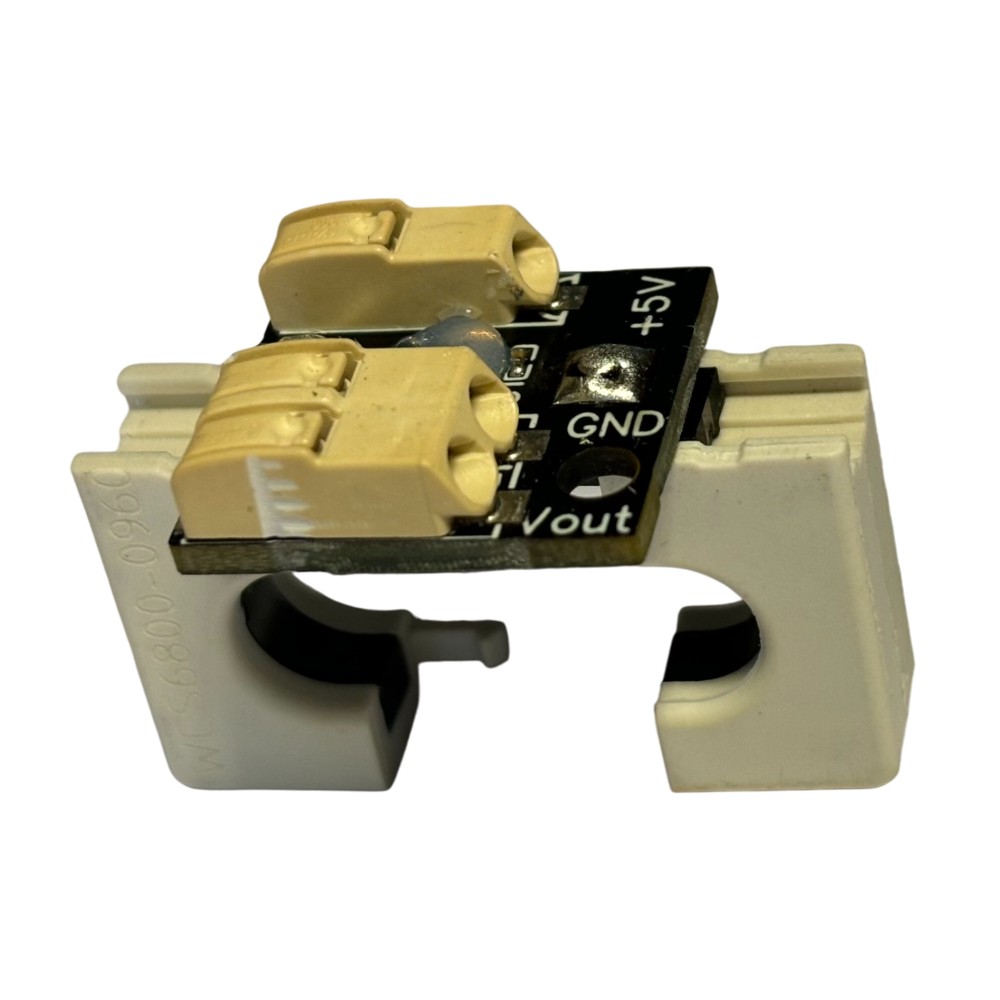

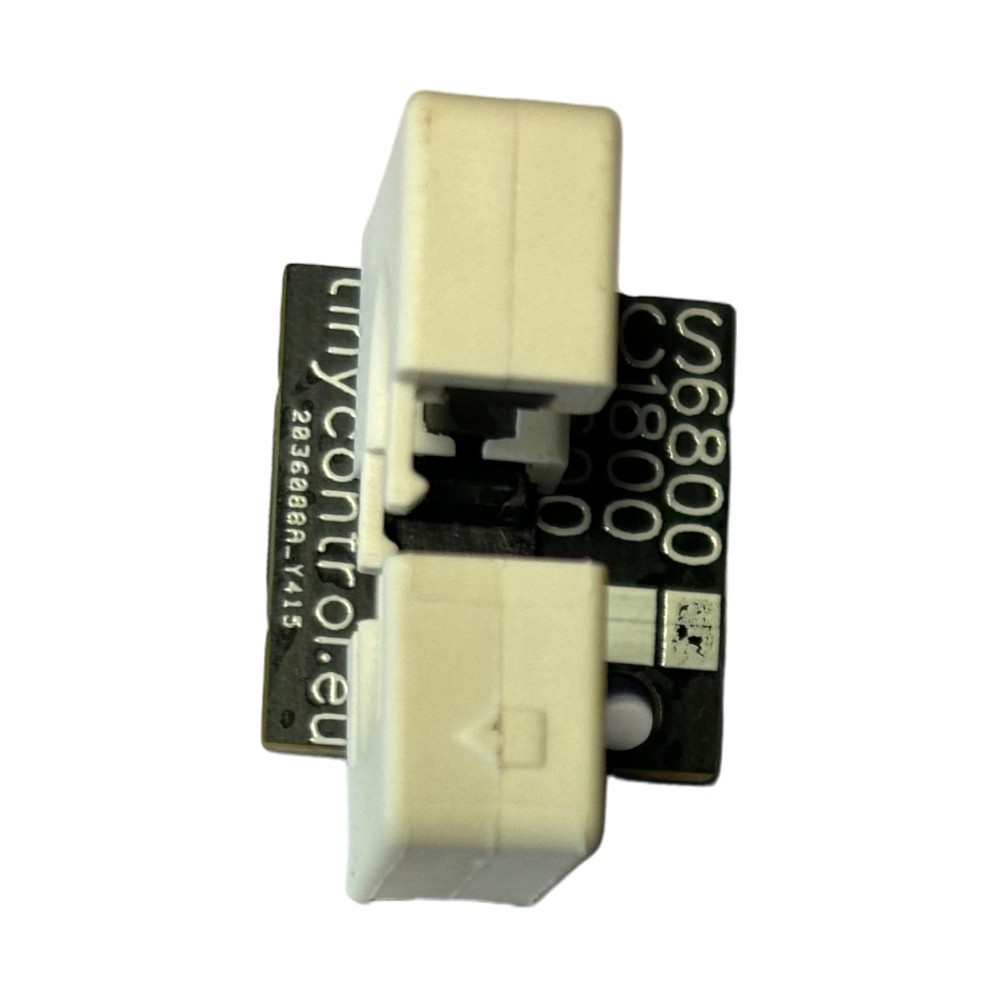

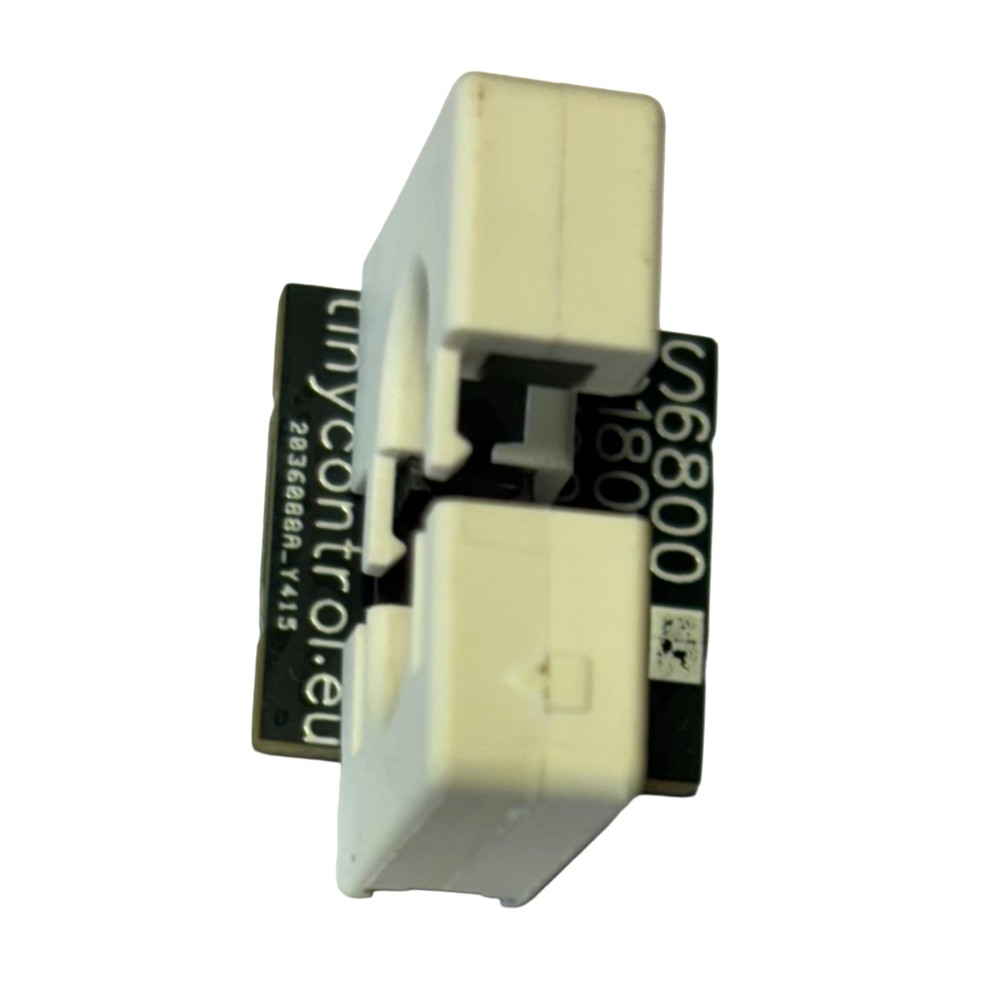

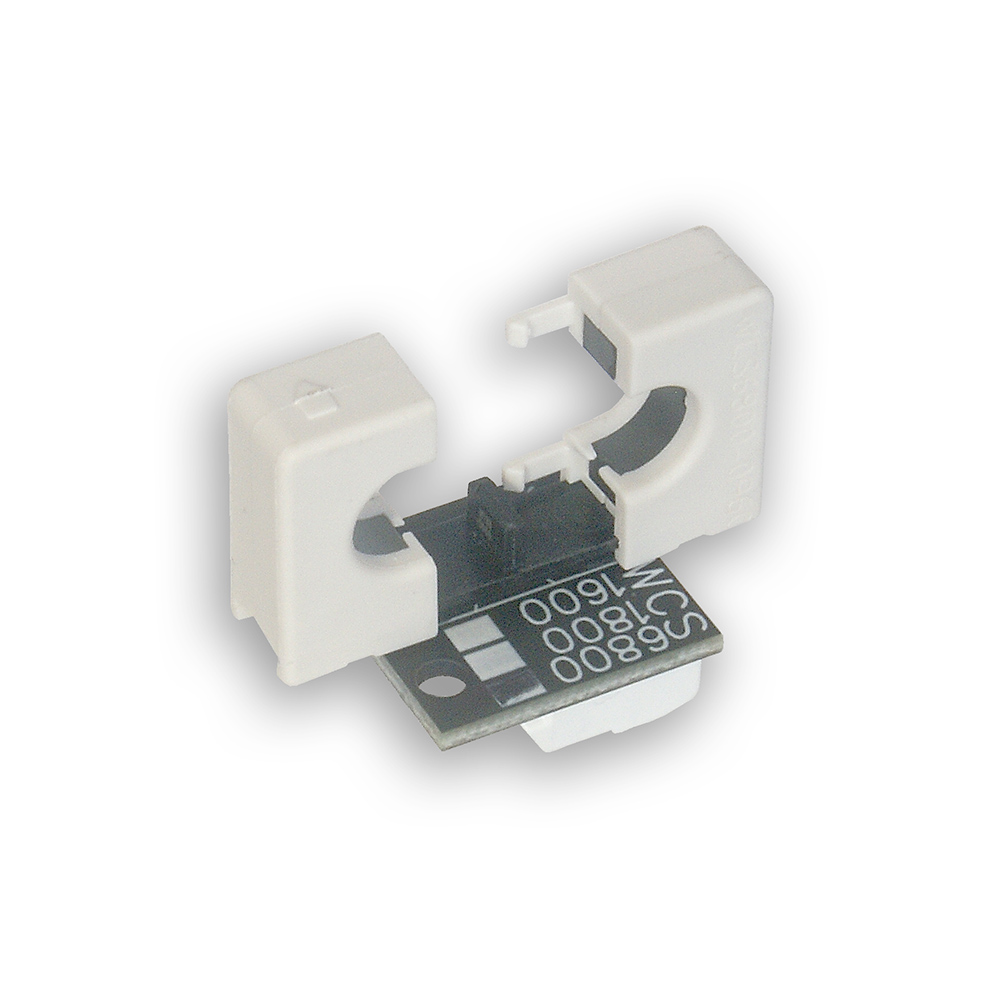

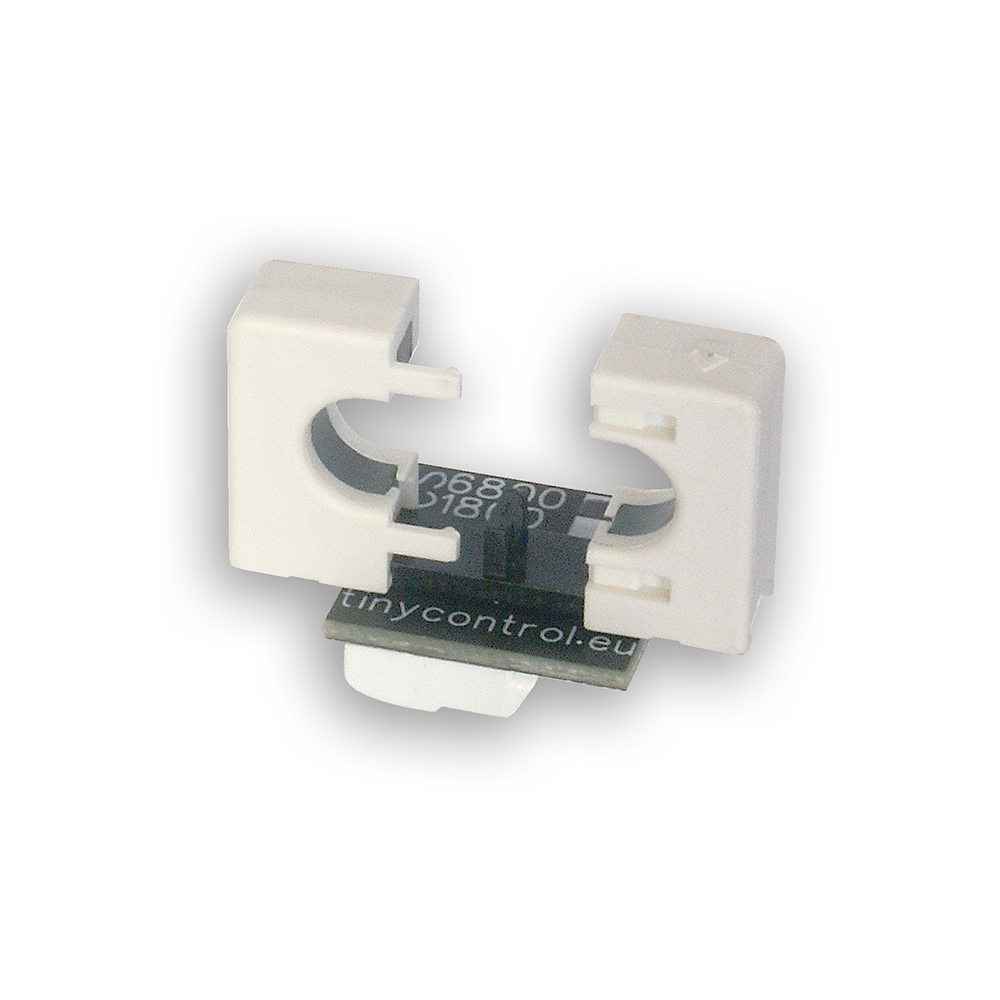

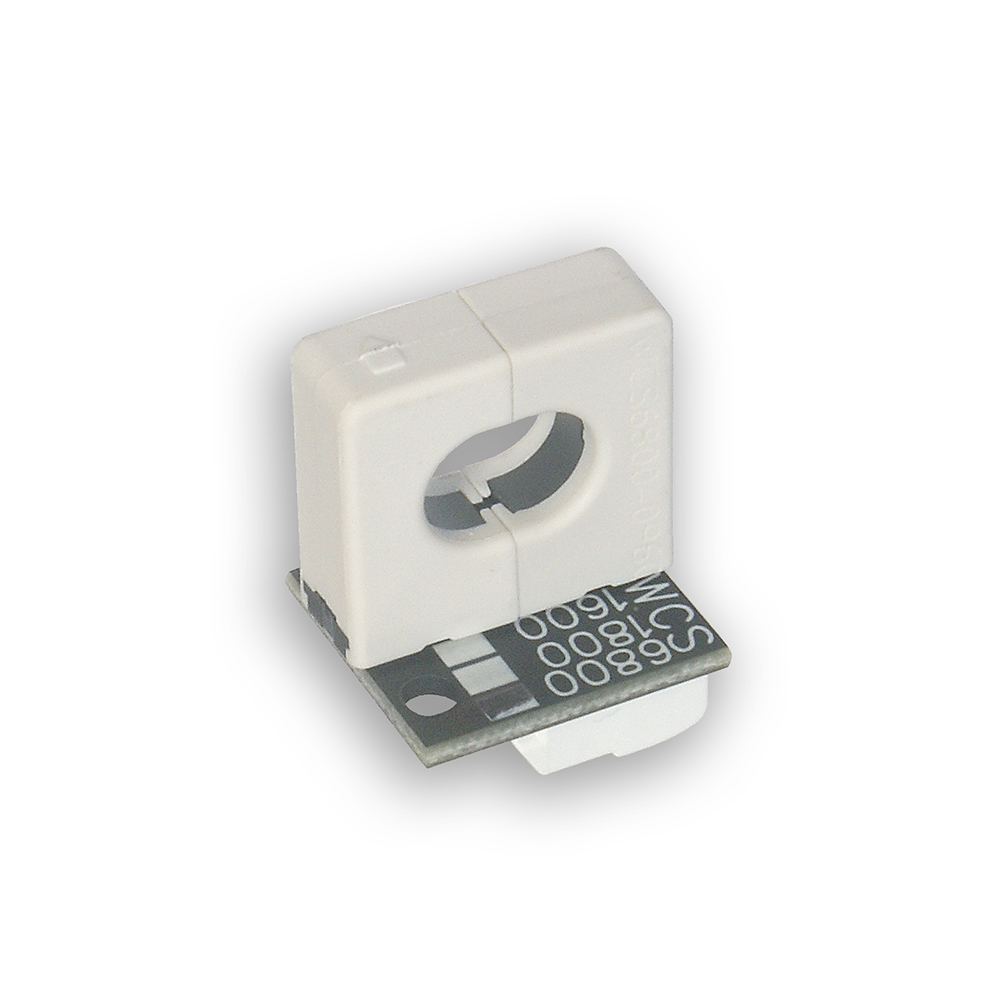

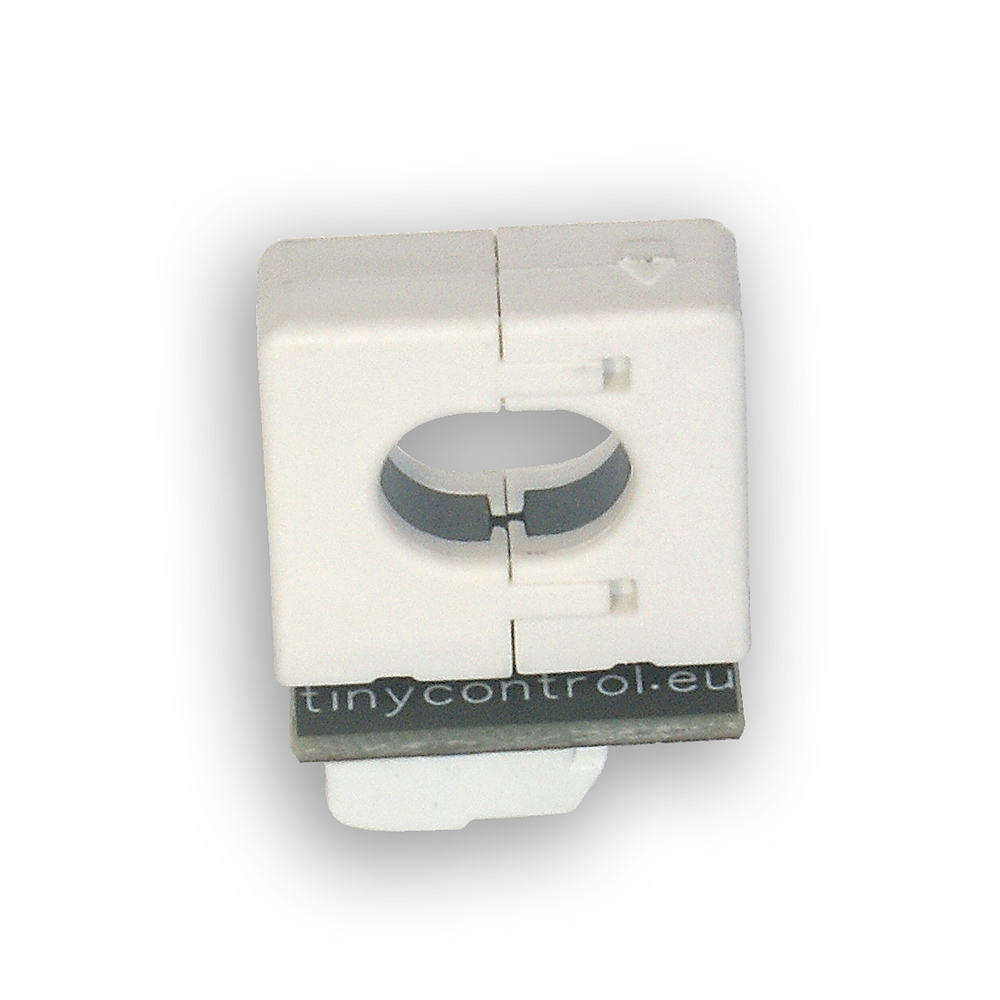

A current sensor based on the Hall effect measures the current in the wire through the sensor opening. It does not require breaking the cable and installing terminals. The extendable halves of the measuring sensor allow it to be placed on the cable without having to thread it through.

Usage with a Lan Controller

Lan Controller v3.0/3.5/4.0 measures only direct current using this sensor.

When used with Lan Controller v3.0, the sensor should be powered from 3.3V from the IDC10-1 connector and the INP1-4A inputs used.

When used with Lan Controller v3.5+ the sensor should be powered from 3.3V from the IDC10-1 connector and the INPA1-4 inputs used or powered from 5V and the INPA1-2 inputs used.

Before use, the indication should be calibrated in the Inputs tab on the Lan Controller page.

Technical specifications

Measurement range	0-35A

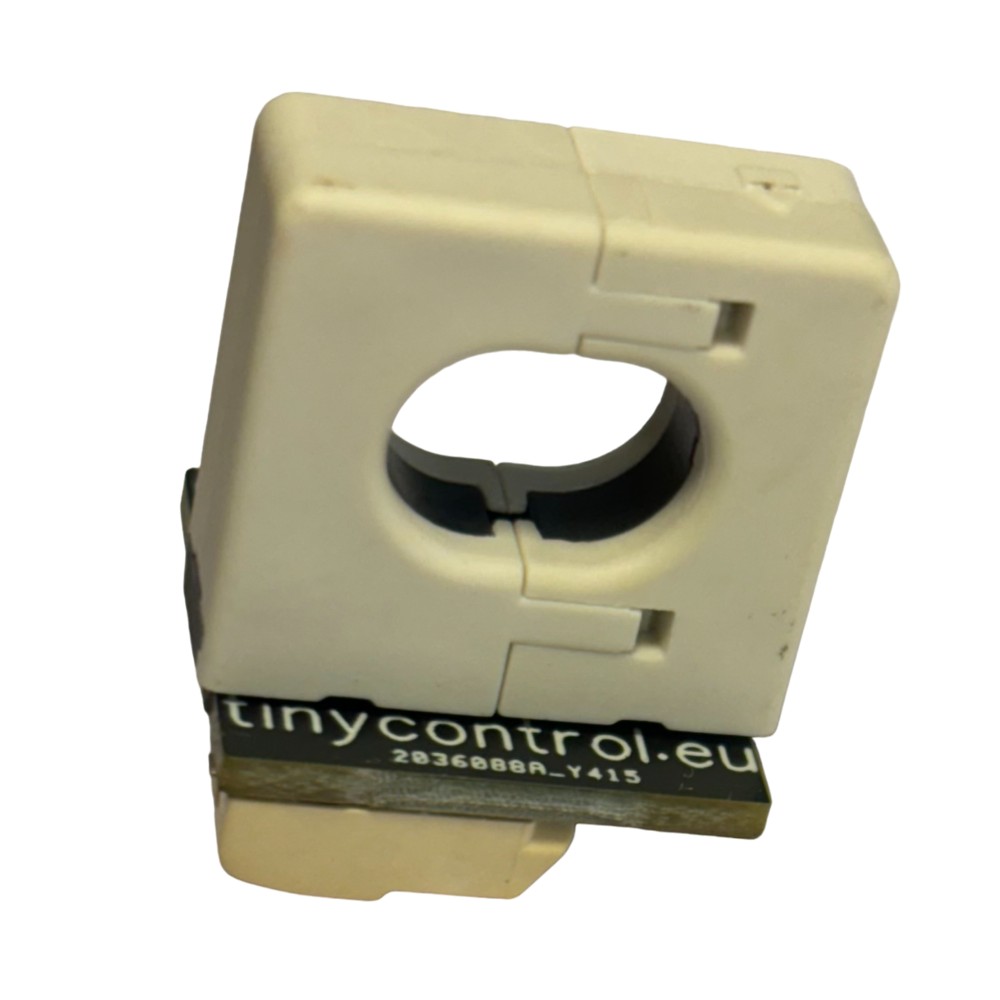

Dimensions of the hole for the measuring cable	oval 11x8mm
Sensitivity	65mV/A
Power supply	3.3V or 5V (from Lan Controller)
Breakdown voltage (insulation)	4000V

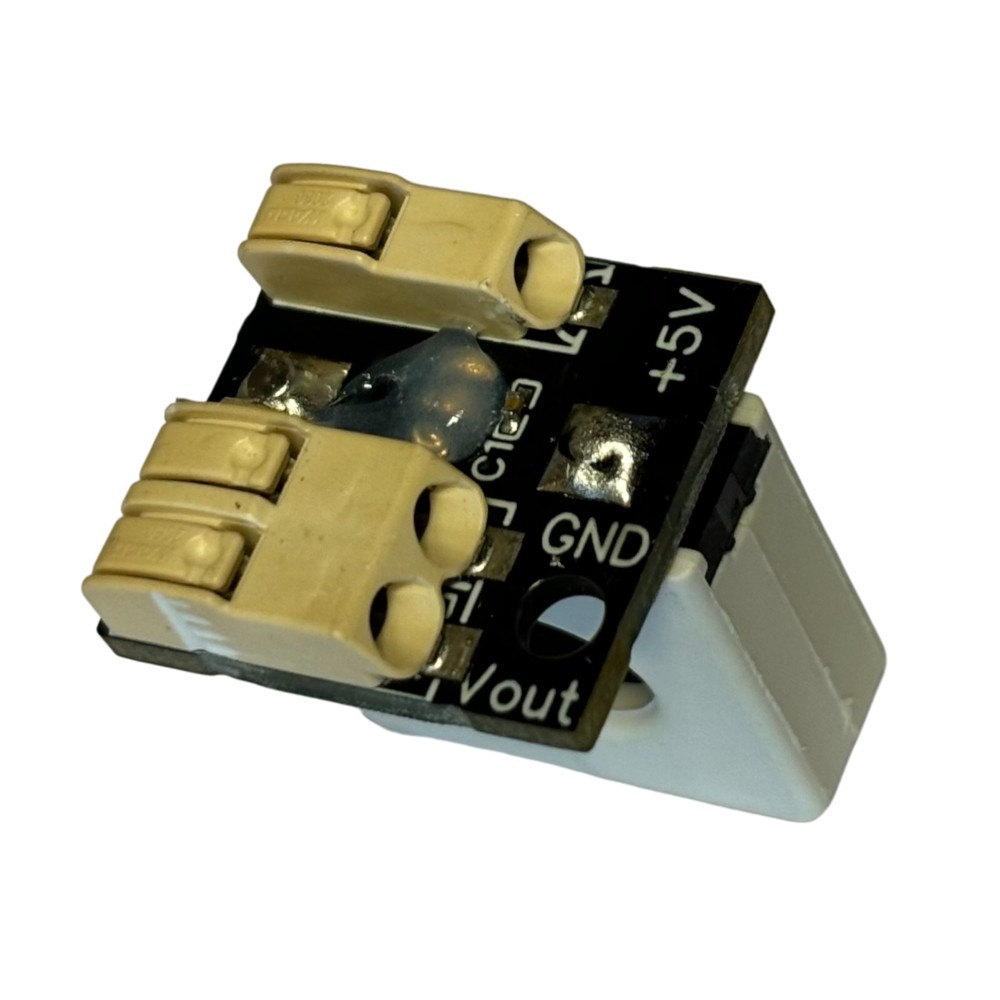

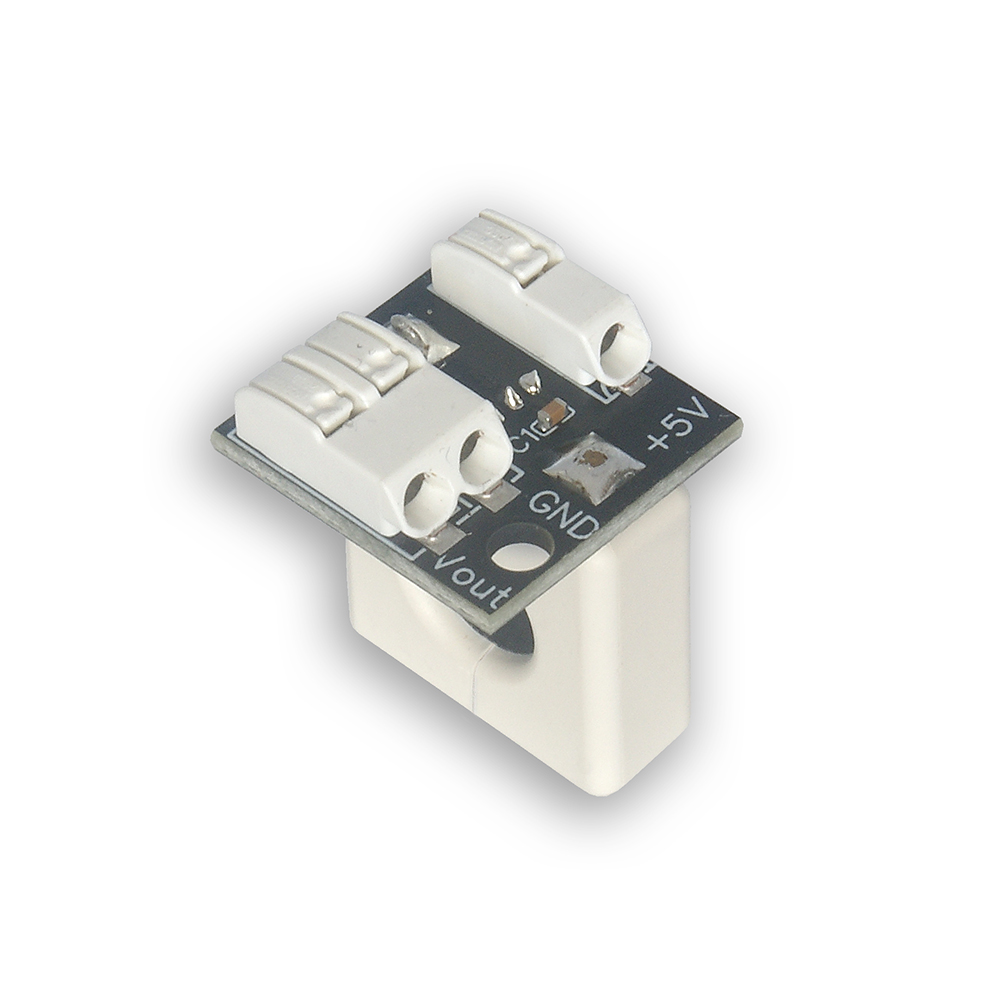

Connector	push-in terminals (with release pressure) for 0.2 – 0.75 mm2 wire - ideal for twisted pair cables
