Current sensor WCS1800

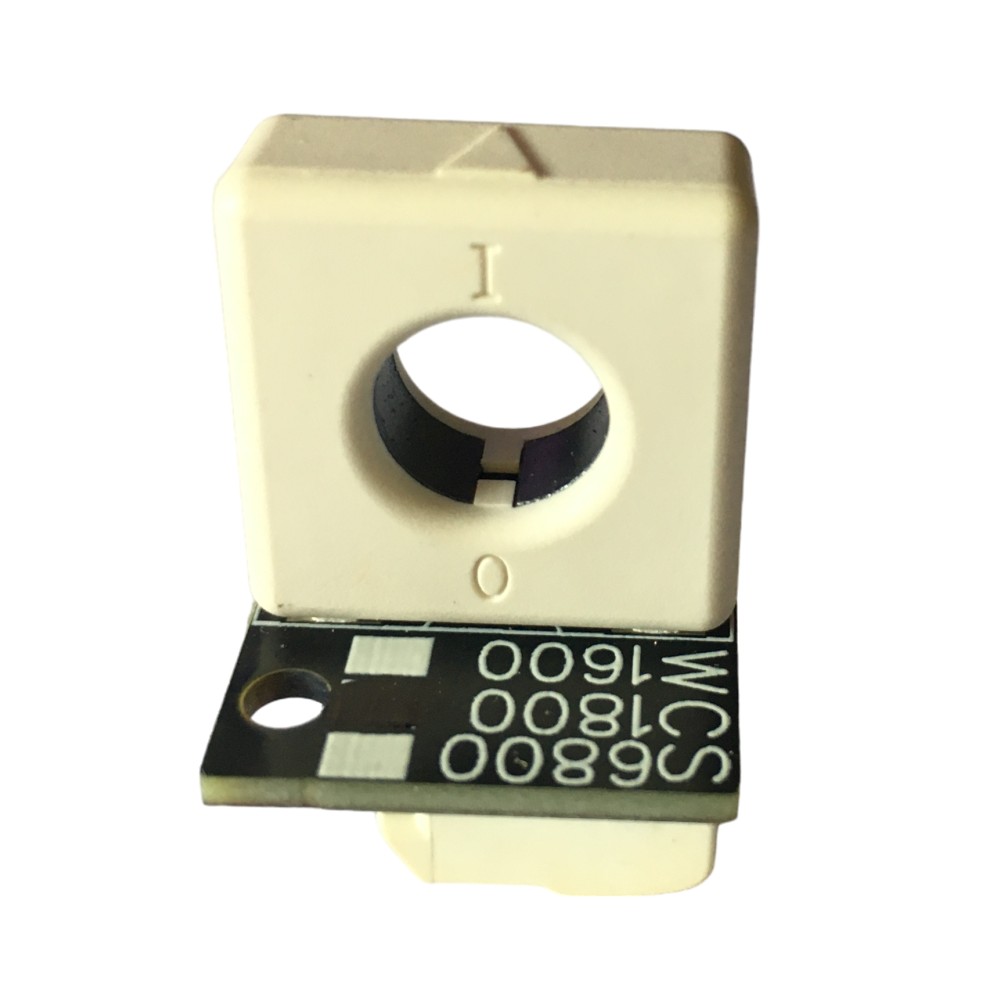

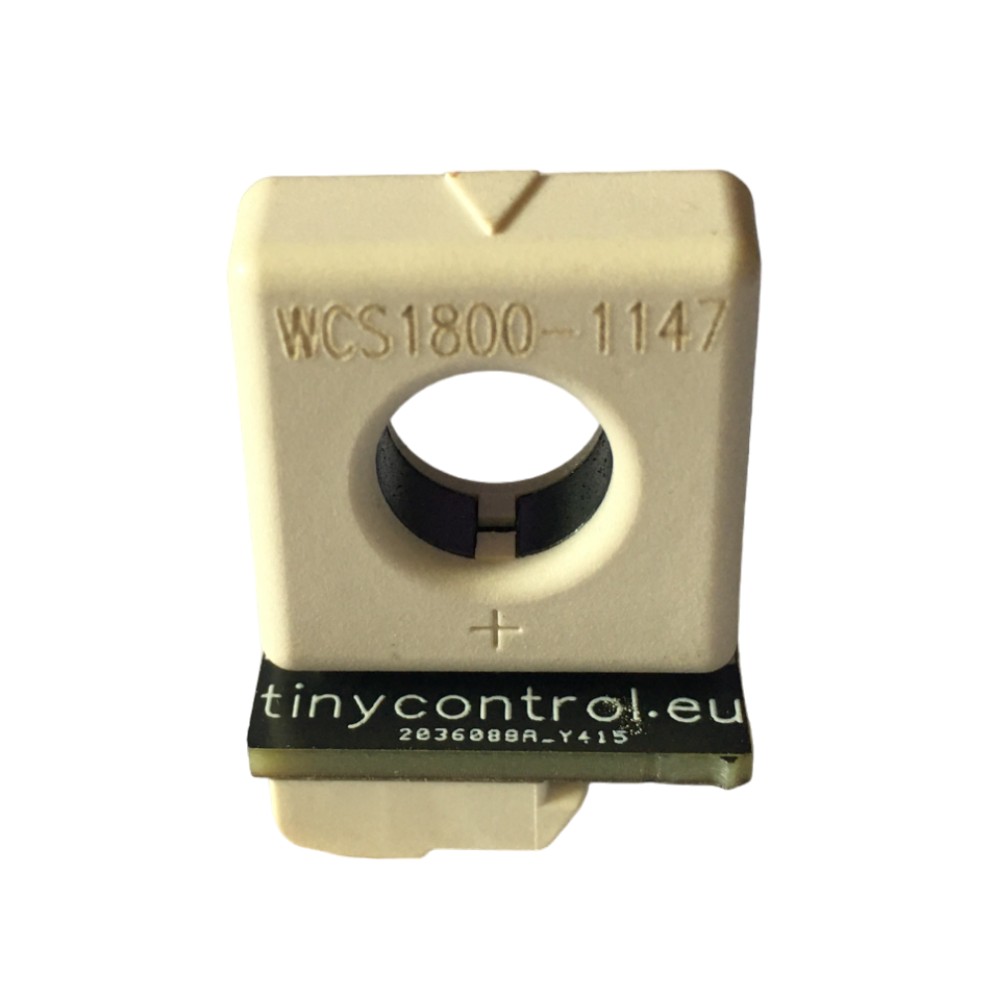

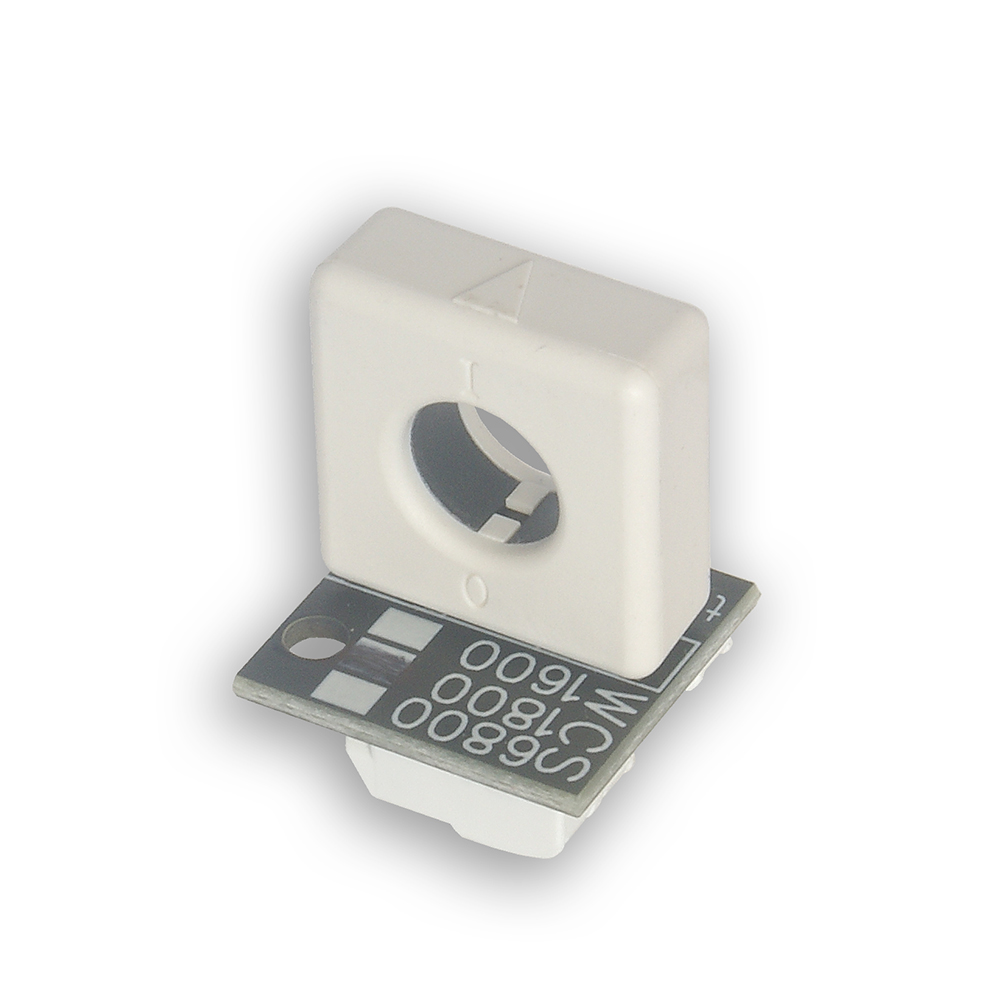

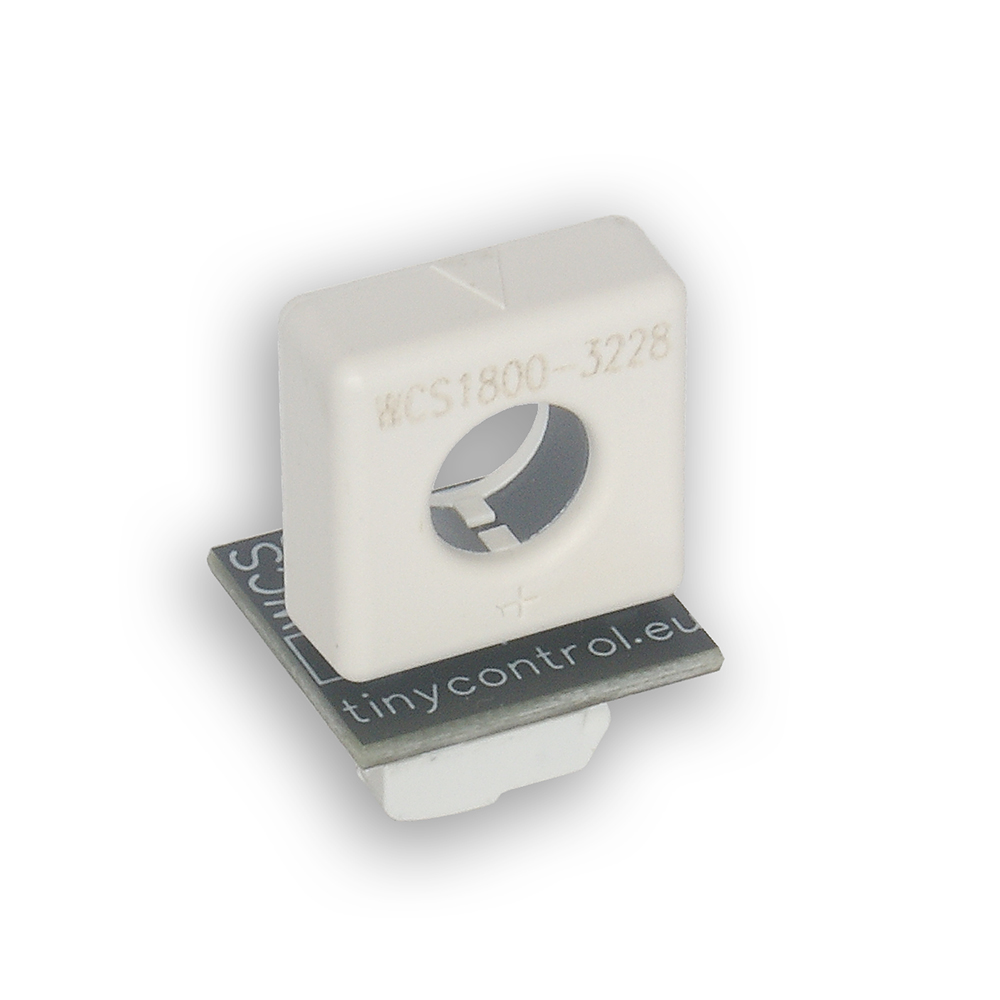

A current sensor based on the Hall effect measures the current in the wire through the sensor opening. It does not require breaking the cable and installing terminals.

Usage with a Lan Controller

Lan Controller v3.0/3.5/4.0 measures only direct current using this sensor.

When used with Lan Controller v3.0, the sensor should be powered from 3.3V from the IDC10-1 connector and the INP1-4A inputs used.

When used with Lan Controller v3.5+ the sensor should be powered from 3.3V from the IDC10-1 connector and the INPA1-4 inputs used or powered from 5V and the INPA1-2 inputs used.

Before use, the indication should be calibrated in the Inputs tab on the Lan Controller page.

Technical specifications

Measurement range	0-35A
Dimensions of the hole for the measuring cable	9mm diameter circle
Sensitivity	66mV/A
Power supply	3.3V or 5V (from Lan Controller)
Breakdown voltage (insulation)	4000V

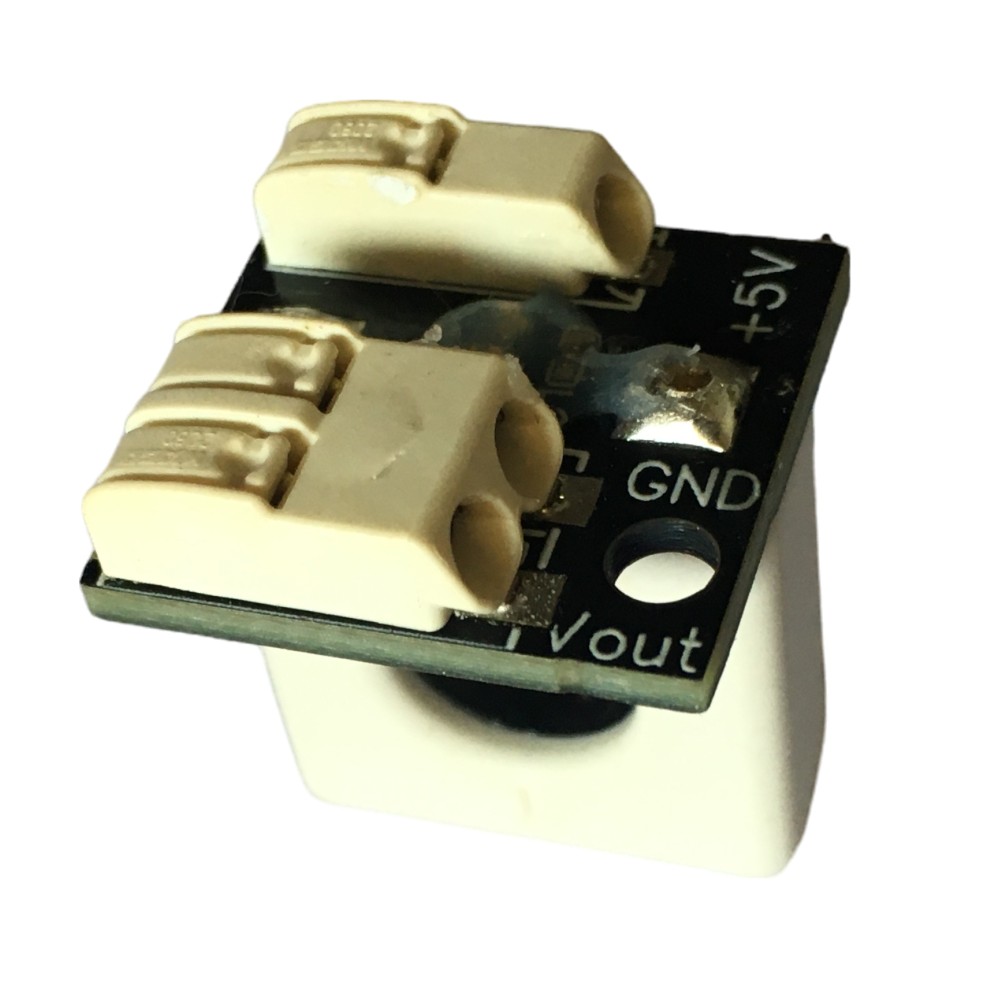

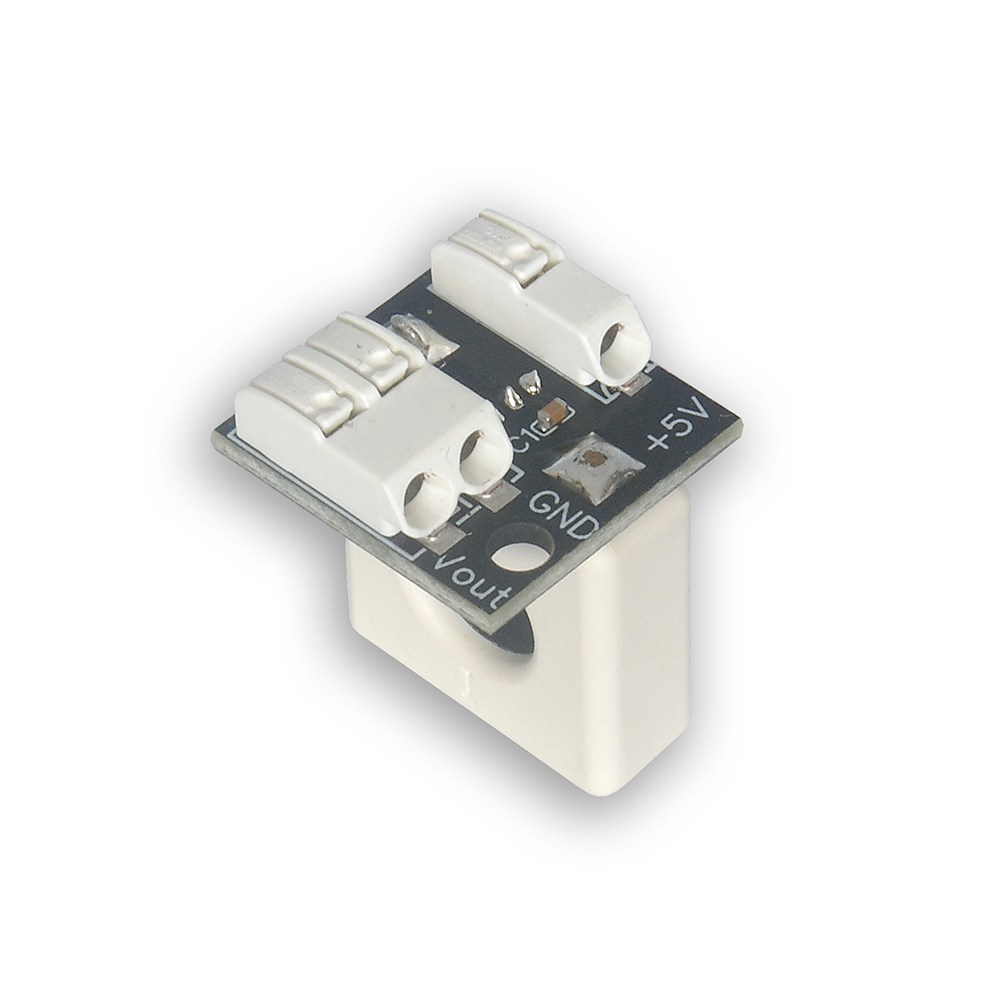

Connector	push-in terminals (with release pressure) for 0.2 – 0.75 mm2 wire - ideal for twisted pair cables
