Relay board with RM85 relay 16 A, 12 V or 24 V coil, with DIN rail mount
Relay board with RM85 relay 16 A, 12 V or 24 V coil, with DIN rail mount

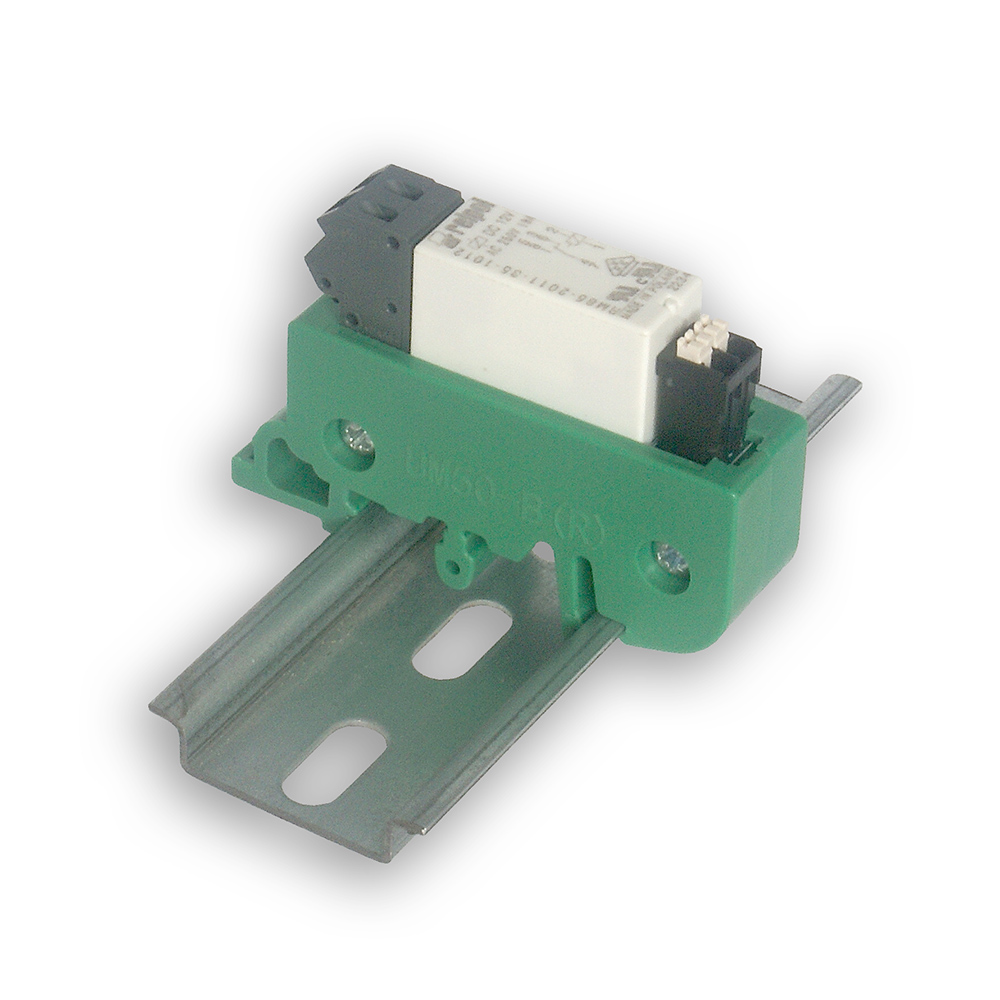

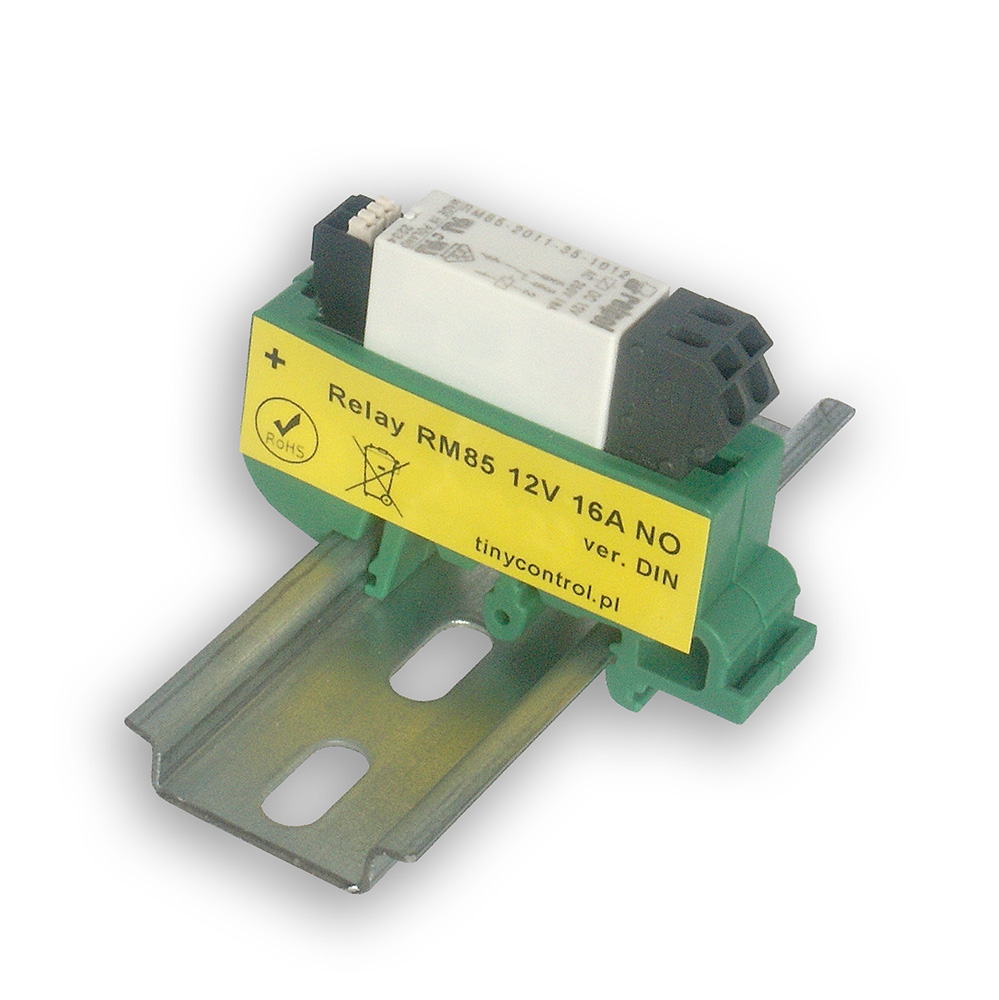

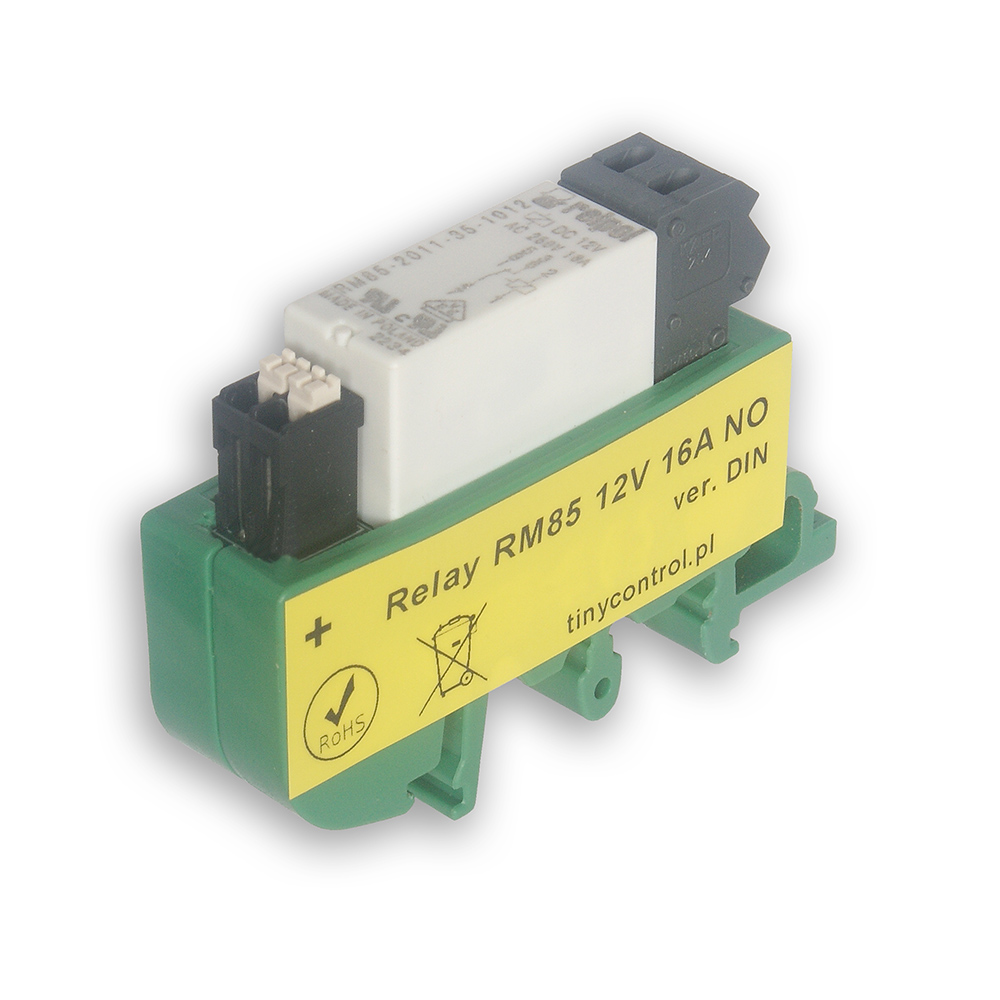

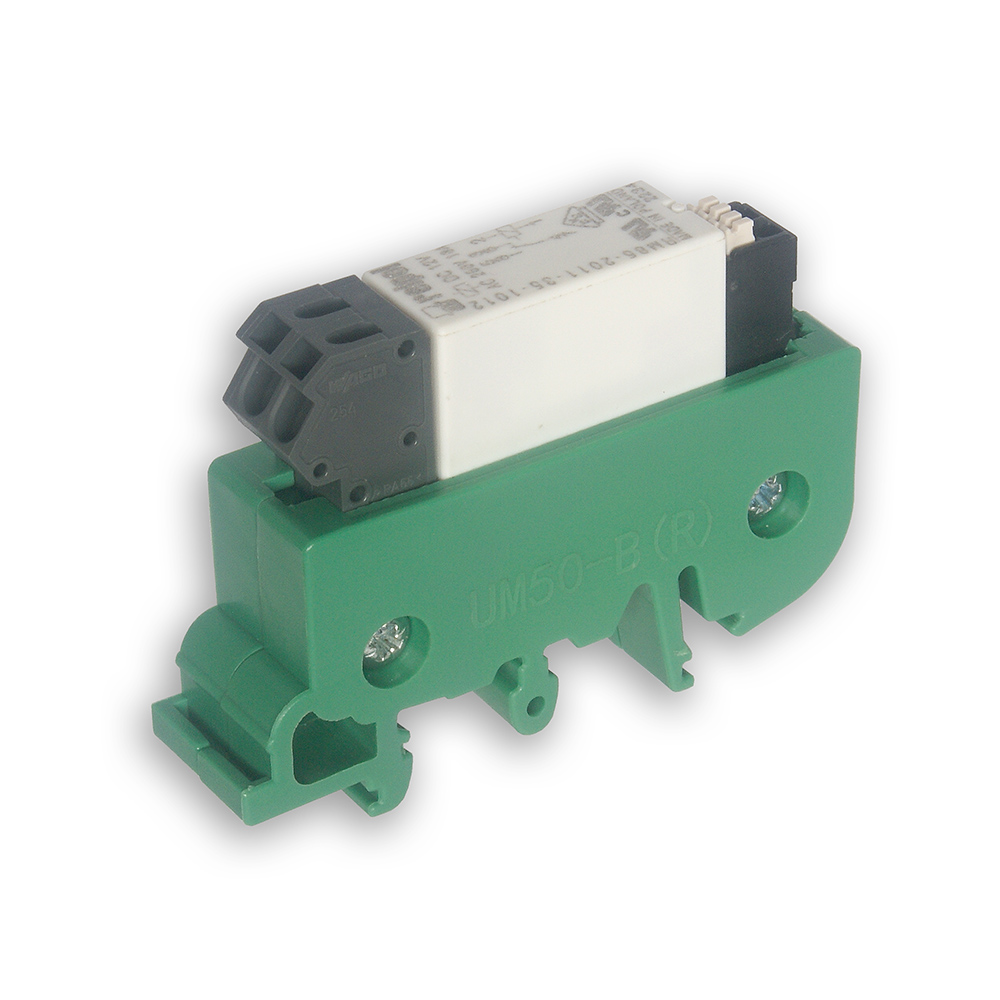

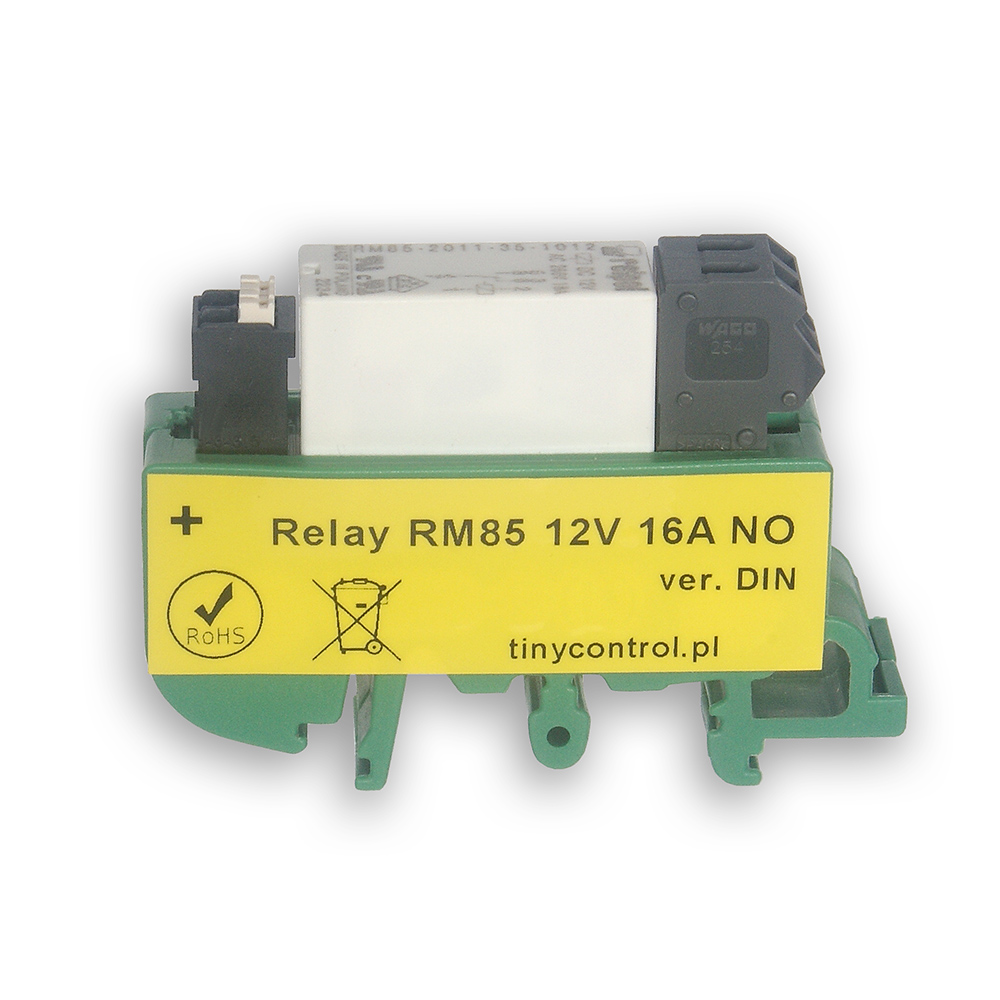

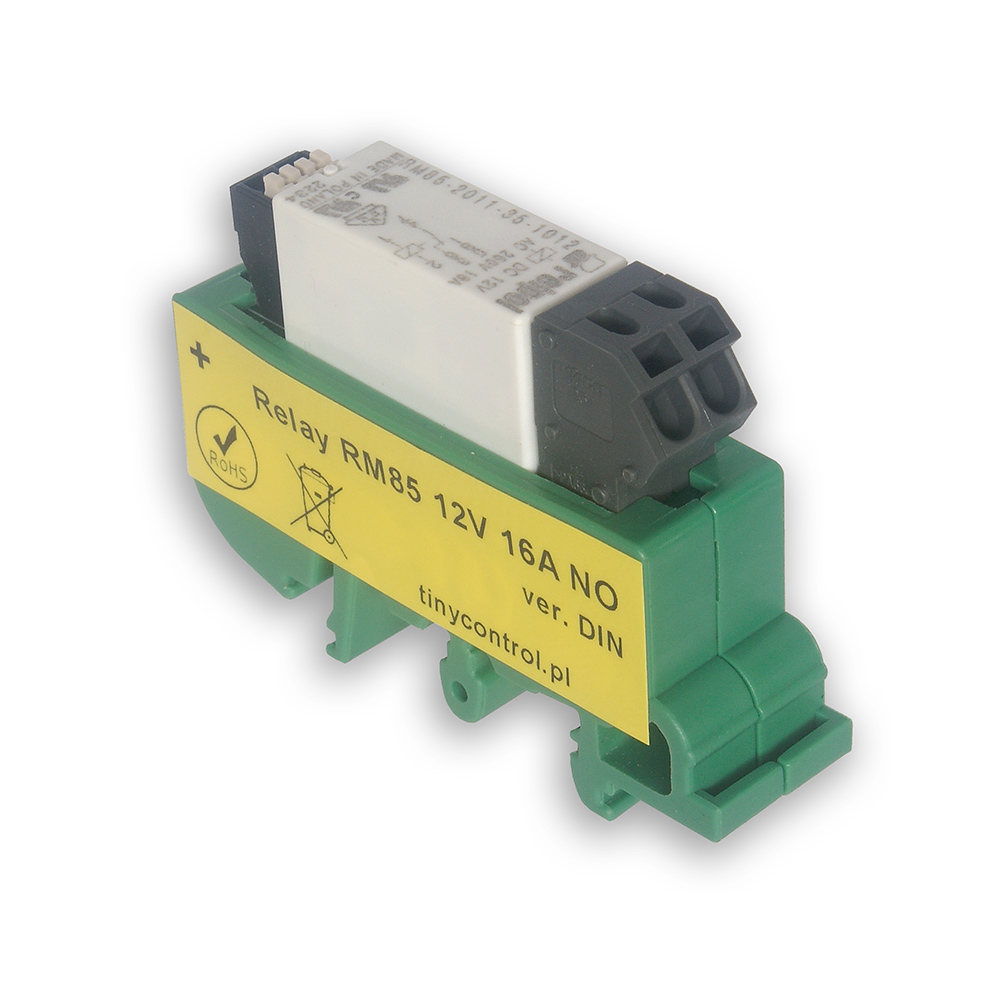

This board features a 16 A RM85 relay with a 12 V DC or 24 V DC coil (two variants) and a DIN rail mounting bracket.
It contains one relay and WAGO self-locking connectors for quick and easy wiring.
The relay has NO (Normally Open) and C (Common) contacts.
It is designed for use with Open Collector outputs in LK devices, among other things.
The high-quality RM85 relay from the Polish company Relpol is characterized by high shock resistance. The special contact design, which removes metal oxides with each switching operation, further extends trouble-free operation.
Technical specifications
Coil control voltage
12 V DC
24 V DC
Number of relays
1
Relay outputs
NO, C
Rated load current
16 A / 250 V AC (AC-1)
16 A / 24 V DC (DC-1)
AC-1/DC-1: non-inductive or low inductive loads, resistance furnaces
Contact resistance
< 100 mΩ
Supply voltage
9-15 V DC
16-28 V DC
The controller's power supply voltage should be within this range.
