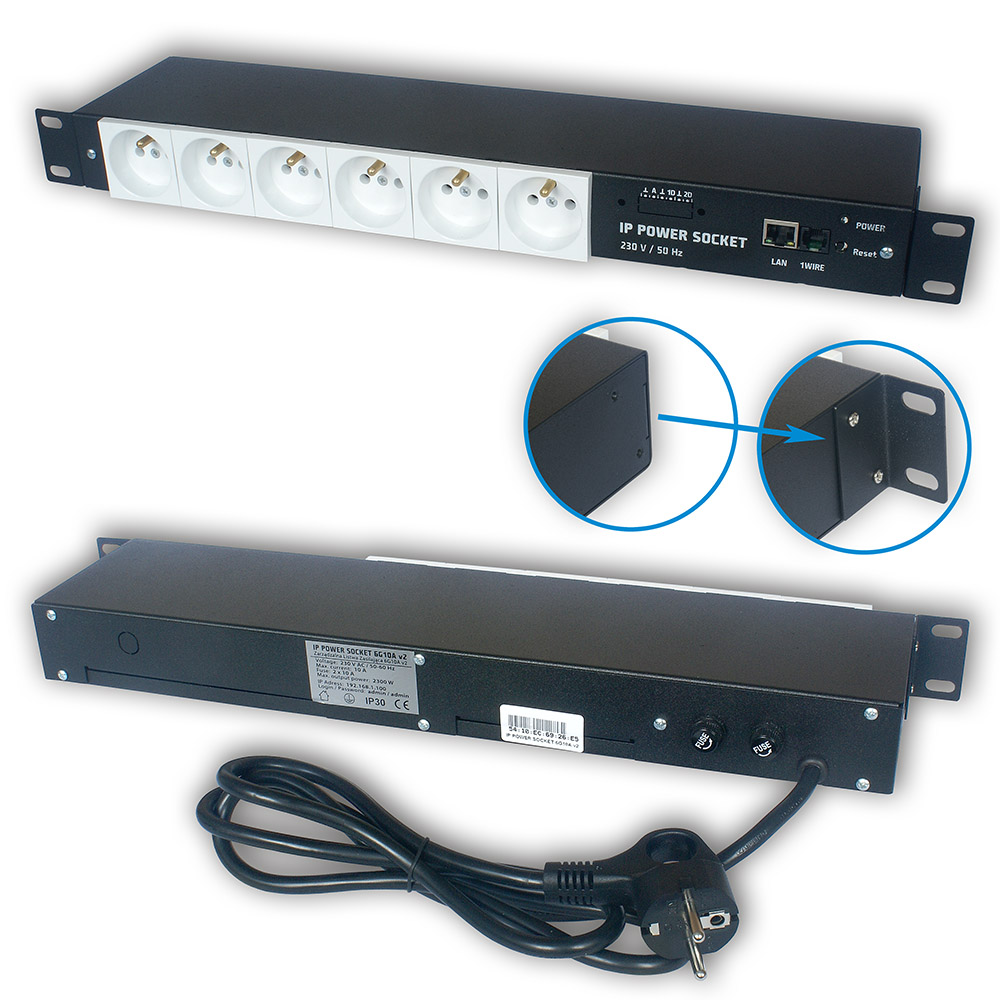

IP Power Socket 6G10A v2 White

Managed power strip IP Power Socket 6G10A v2 with white sockets.

Power strip in Rack 19 inch standard, equipped with 6 independently managed 230V sockets. Management of the strip can be done via the embedded web server or via the SNMP protocol.

Basic features

Technical specifications

Quantity of sockets 6 (white)
Supply voltage 230V AC
Maximum current 10A
Maximum power 2300W
Protection 2x10A fuse
Connection type Cable with plug
Interfaces Ethernet 10 Mbit/s
1-Wire - support for up to 4 sensors via RJ11.

Examples of application

Download

Firmware

v6.12a

Filename: powersocketip6g_v6_12a.bin (298.0 KB)

v6.12

Filename: powersocketip6g_v6_12.bin (299.3 KB)

v6.10

Filename: powersocketip6g_v6_10.bin (293.0 KB)

v6.09

Filename: powersocketip6g_v6_09.bin (301.3 KB)

Documents

Deklaracja CE - IP Power Socket 6G10A v2

Filename: Deklaracja_Listwa_Zasil_6G10A_v2_LANLIS-xxx.pdf (176.0 KB)

Informacja techniczna - IP Power Socket 6G10A v2 pl

Filename: Listwa_Zasil_6G10A_v2_LANLIS-010_PL_Tiny.pdf (1.3 MB)

Technical information - IP Power Socket 6G10A v2 en

Filename: Power_Socket_6G10A_v2_LANLIS-010_EN_Tiny.pdf (1.3 MB)

Instrukcja - IP Power Socket 6G10A v2 pl

Filename: instrukcja_IP_Power_Socket_6G10A_v2_LANLIS-010-015_PL-1.pdf (1.6 MB)

Manual - IP Power Socket 6G10A v2 en

Filename: manual_IP_Power_Socket__6G10A_v2_LANLIS-010-015_En-1.pdf (1.6 MB)
