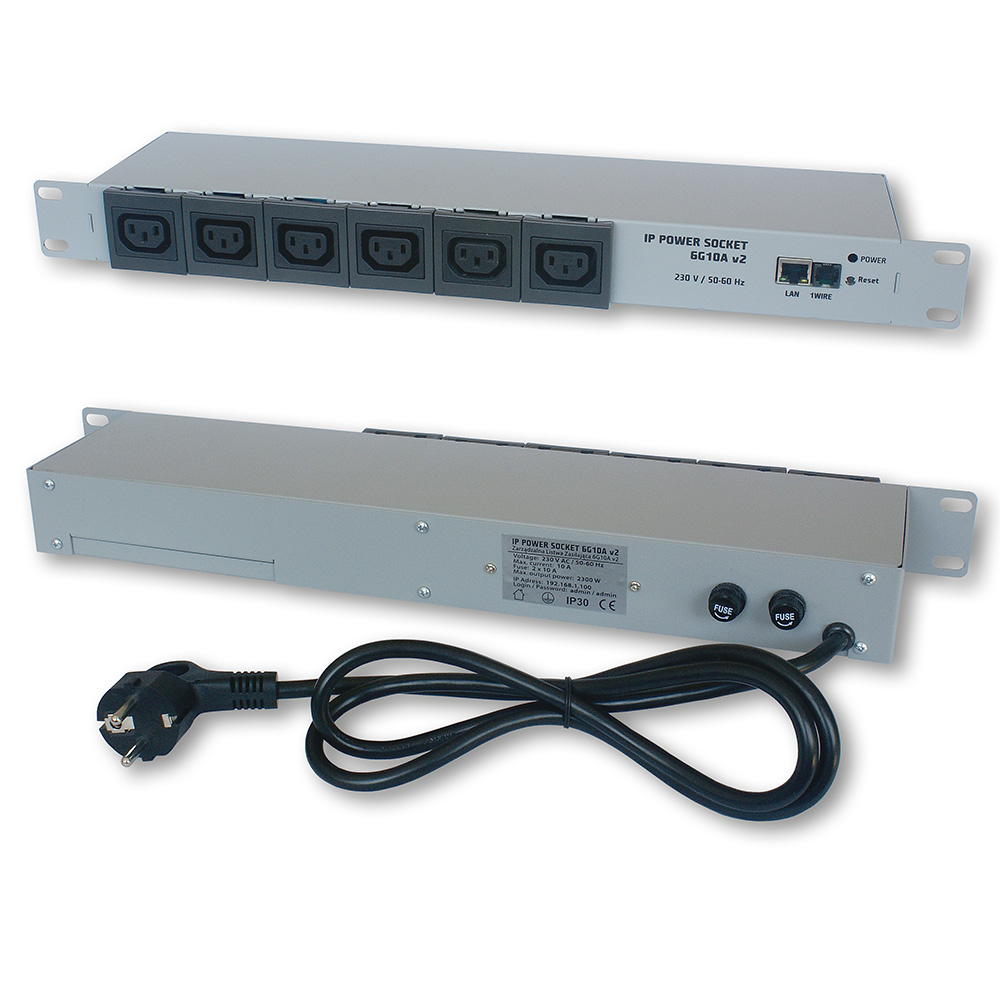

IP Power Socket 6G10A v2 IEC320

Managed power strip IP Power Socket 6G10A v2 with IEC320 sockets.

Power strip in Rack 19 inch standard, equipped with 6 independently managed 230V sockets. Management of the strip can be done via the embedded web server or via the SNMP protocol.

Basic features

  • Management via WWW or SNMP v2.
  • Temperature measurement inside the strip.
  • Possibility to measure temperatures from 4 1-Wire sensors.
  • Event Config - adjustable delay of turning on outputs after switching on the strip.
  • Event Config - the ability to program sockets on/off depending on the temperature.
  • Event Config - the ability to program sending an e-mail or SNMP trap when the temperature reading meets the given condition.
  • Watchdog - the ability to control up to 5 IP addresses and react in case of no response.
  • Scheduler - it is possible to program up to 10 time events to turn on or off the socket (only sockets 1-5).
  • Remote - the ability to remotely control via the Lan Controller website.
  • NTP support for automatic time setting according to reference servers.

Technical specifications

Quantity of sockets 6 (IEC320)
Supply voltage 230V AC
Maximum current 10A
Maximum power 2300W
Protection 2x10A fuse
Connection type Cable with plug
Interfaces Ethernet 10 Mbit/s
1-Wire - support for up to 4 sensors via RJ11.

Examples of application

  • Server cabinets.
  • Low power heating control.
  • Power supply for devices requiring remote control.
  • Power supply for devices requiring temporary on/off.




Filename: powersocketip6g_v6_12a.bin (298.0 KB)


Filename: powersocketip6g_v6_12.bin (299.3 KB)


Filename: powersocketip6g_v6_10.bin (293.0 KB)


Filename: powersocketip6g_v6_09.bin (301.3 KB)
